NFAM2512L7B - onsemi

Description: UL Certification: E209204; Low-Loss, Short-Circuit Rated IGBTs (FS7); Built-in Under-voltage Protection (UVP); Built-In Bootstrap Diodes/Resistors; Single-Grounded Power Supply; This is a Pb−Free Device; 1200V 25A 3-Phase FS7 IGBT Inverter, Including Control ICs for Gate Drive and Protections

Download NFAM2512L7B Model

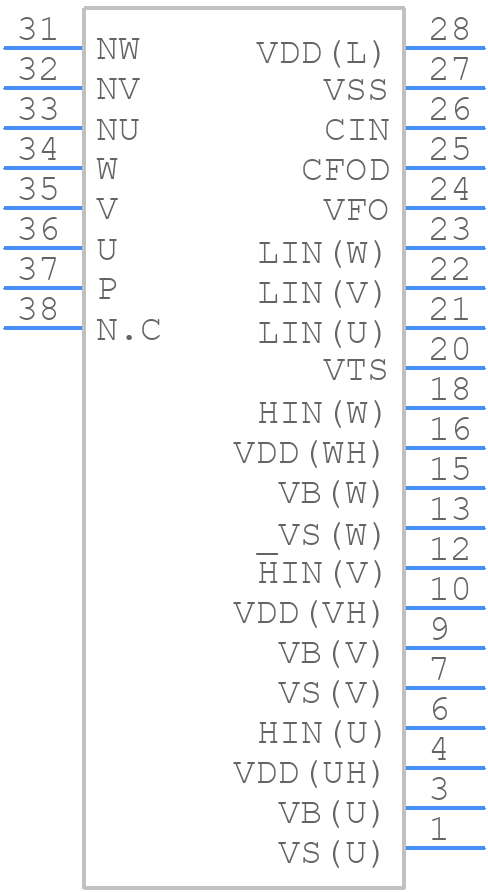

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

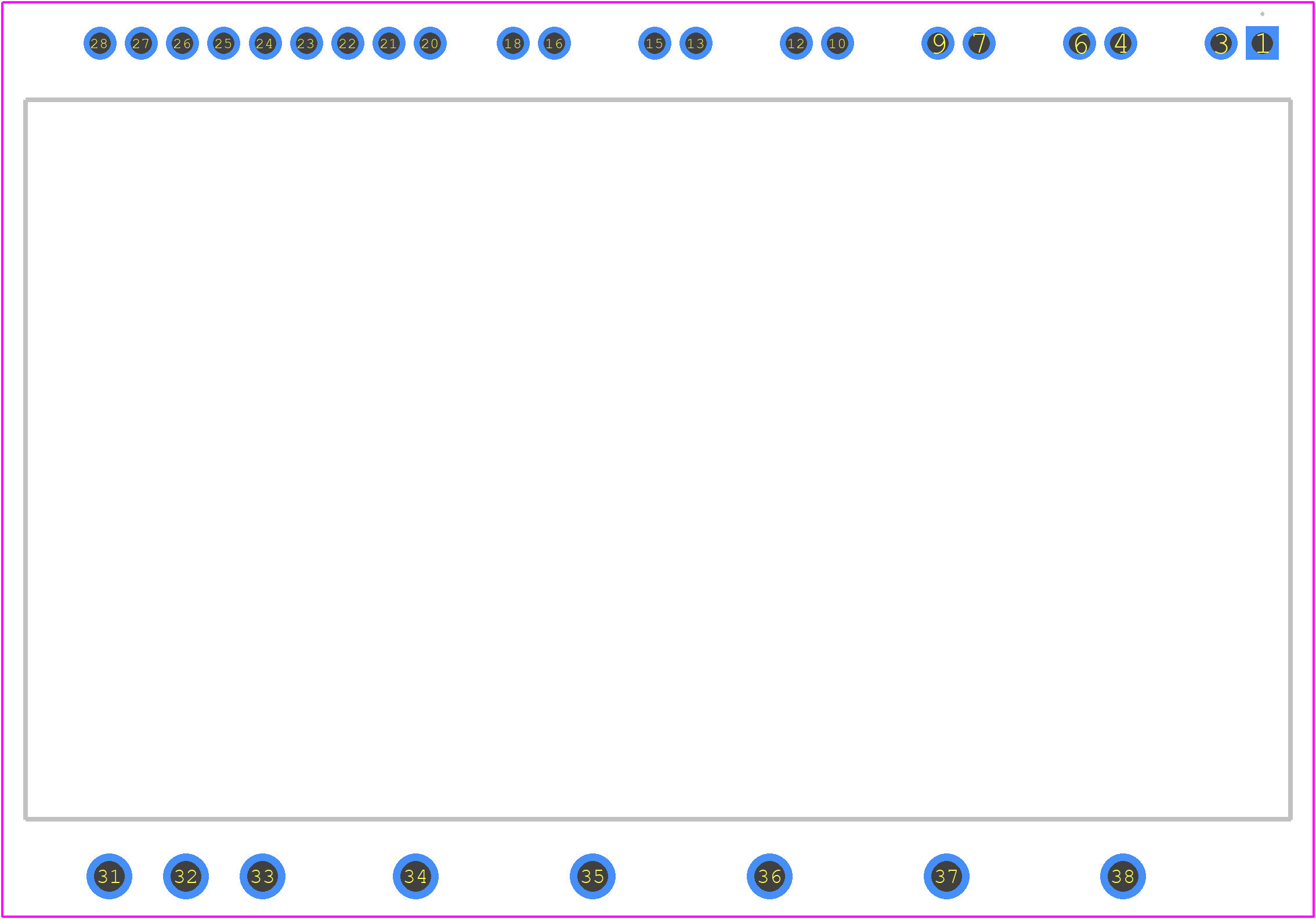

NFAM2512L7B - onsemi PCB footprint - Other - Other - DIP39, 54.5x31.0 EP−2 CASE MODGX  ISSUE O_2023-1
click to zoom
3D Models
NFAM2512L7B - onsemi  - 3D model - Other - DIP39, 54.5x31.0 EP−2 CASE MODGX  ISSUE O_2023-1
click to zoom

NFAM2512L7B Details

  • Manufacturer Part Number:

    NFAM2512L7B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP39, 54.50x31.00x5.60, 1.78P EP−2

  • Manufacturer Package Code:

    MODGX

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

NFAM2512L7B Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To handle ESD protection during handling and assembly, use anti-static wrist straps, mats, and packaging materials. Ensure that all equipment and tools are properly grounded, and follow proper handling procedures to minimize the risk of ESD damage.
  • The recommended storage and handling conditions for the NFAM2512L7B include storing the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive mechanical stress to the device.
