Part Image

NFAM5065L4B - onsemi

Description: 650 V - 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs (FS4); Very Low Thermal Resistance Using; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Single-Grounded Power Supply; Isolation Rating: 2500 Vrms / 1 min.

Download NFAM5065L4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

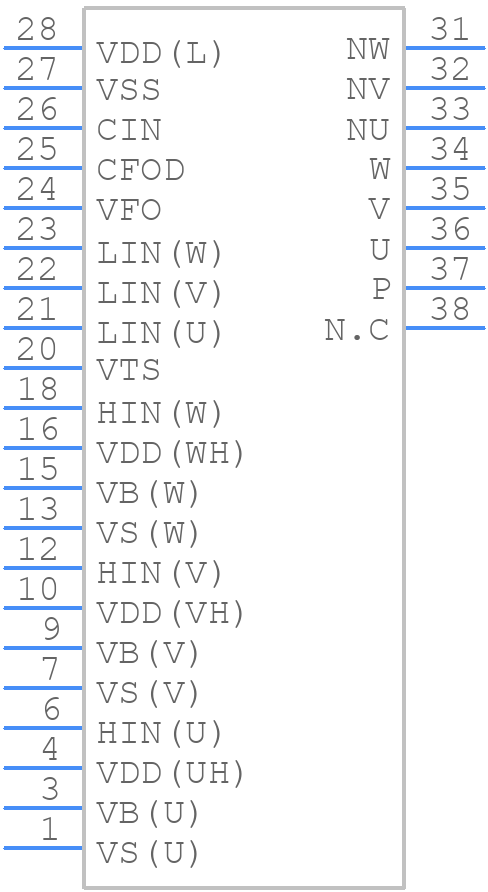

NFAM5065L4B - onsemi - PCB symbol
click to zoom
PCB Footprints

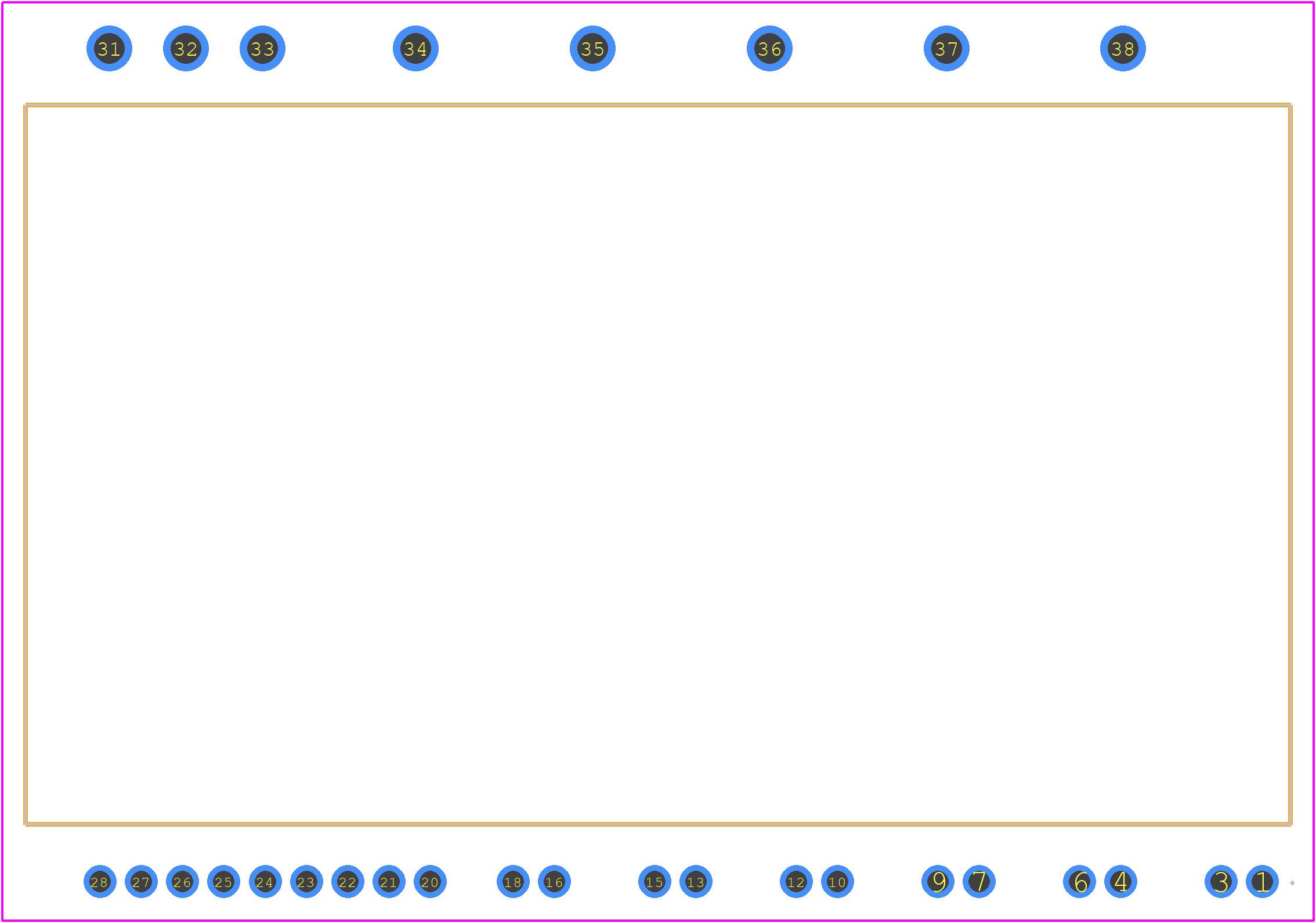

NFAM5065L4B - onsemi PCB footprint - Other - Other - DIP39, 54.5x31.0 EP−2 CASE MODGX ISSUE O
click to zoom
3D Models
NFAM5065L4B - onsemi - 3D model - Other - DIP39, 54.5x31.0 EP−2 CASE MODGX ISSUE O
click to zoom

NFAM5065L4B Details

  • Manufacturer Part Number:

    NFAM5065L4B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP39, 54.50x31.00x5.60, 1.78P EP−2

  • Package Description:

    DIP-39/29

  • Manufacturer Package Code:

    MODGX

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XDMA-T29

  • Length:

    54.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    100 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,29LEAD,1.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.7 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    300 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

NFAM5065L4B Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Monitor the device's current, voltage, and temperature. Implement overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (TSD) to prevent damage from excessive stress.
  • Consult the application note and reference design provided by onsemi. Perform thorough simulations and testing to optimize the device's performance for your specific use case.
  • Follow the recommended soldering profile and assembly guidelines provided in the datasheet. Ensure a clean and dry PCB, and use a solder with a melting point above 217°C (423°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAM5065L4B Overview

Use the download button to access the NFAM5065L4B schematic symbol, PCB footprint, and 3D model.
