NFAP1060L3TT - onsemi

Description: A single power supply drive is enabled through the use of bootstrap circuits for upper power supplies. (externally set); Built-in under voltage protection; Thermistor for Substrate Temperature Measurement; Compact 44mm x 20.9mm single in-line package; Certification : UL Recognized (File number : E339285)

Download NFAP1060L3TT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

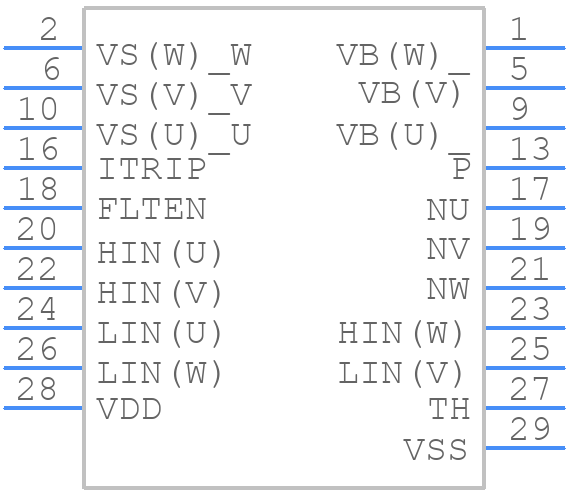

NFAP1060L3TT - onsemi - PCB symbol
click to zoom
PCB Footprints

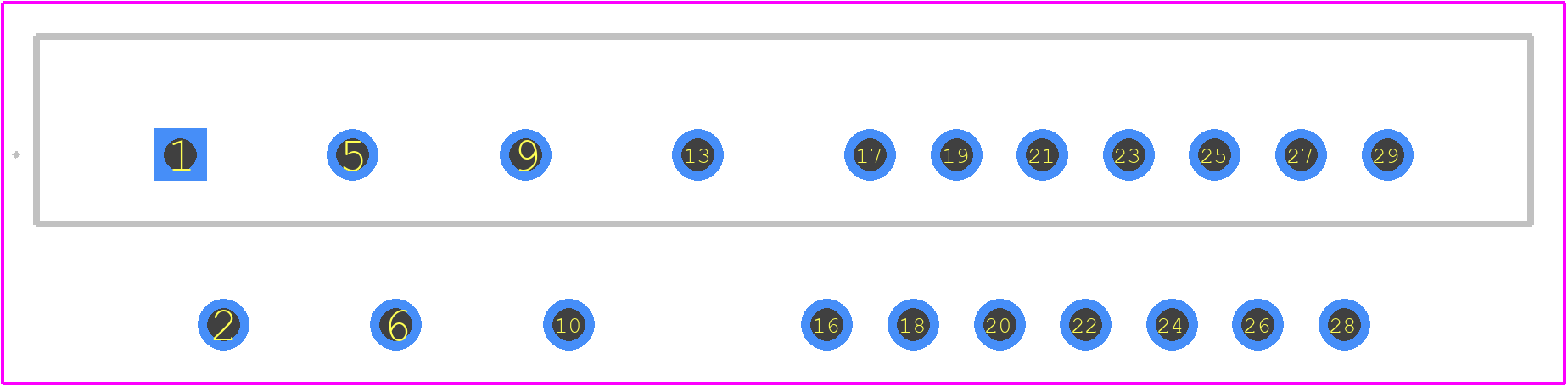

NFAP1060L3TT - onsemi PCB footprint - Other - Other - SIP29 CASE 127FB
click to zoom
3D Models
NFAP1060L3TT - onsemi - 3D model - Other - SIP29 CASE 127FB
click to zoom

NFAP1060L3TT Details

  • Manufacturer Part Number:

    NFAP1060L3TT

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP29 44.00x20.90x5.50, 1.27P

  • Manufacturer Package Code:

    127FB

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    39 Weeks

  • Date Of Intro:

    2019-02-05

  • Manufacturer:

    onsemi

  • YTEOL:

    10

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE= 15V

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XSFM-T21

  • Number of Functions:

    1

  • Number of Terminals:

    21

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Equivalence Code:

    SIP21,.06

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    450 V

  • Supply Voltage-Nom (Vsup):

    280 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE
