A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a thermal relief pattern on the top layer, and a solid copper pour on the bottom layer connected to the thermal pad of the device. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and ensure that the device is not exposed to temperatures beyond its rated junction temperature (Tj) of 150°C.
The recommended gate drive voltage for the NFAQ0860L33T is between 10V to 15V, with a maximum gate-source voltage of ±20V. This ensures reliable switching and minimizes the risk of damage to the device.
Yes, the NFAQ0860L33T is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the application's requirements are within the device's capabilities.
To protect the device from ESD, it's recommended to follow proper handling and storage procedures, use ESD-safe materials and equipment, and implement ESD protection circuits in the application, such as TVS diodes or ESD protection arrays.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAQ0860L33T Overview

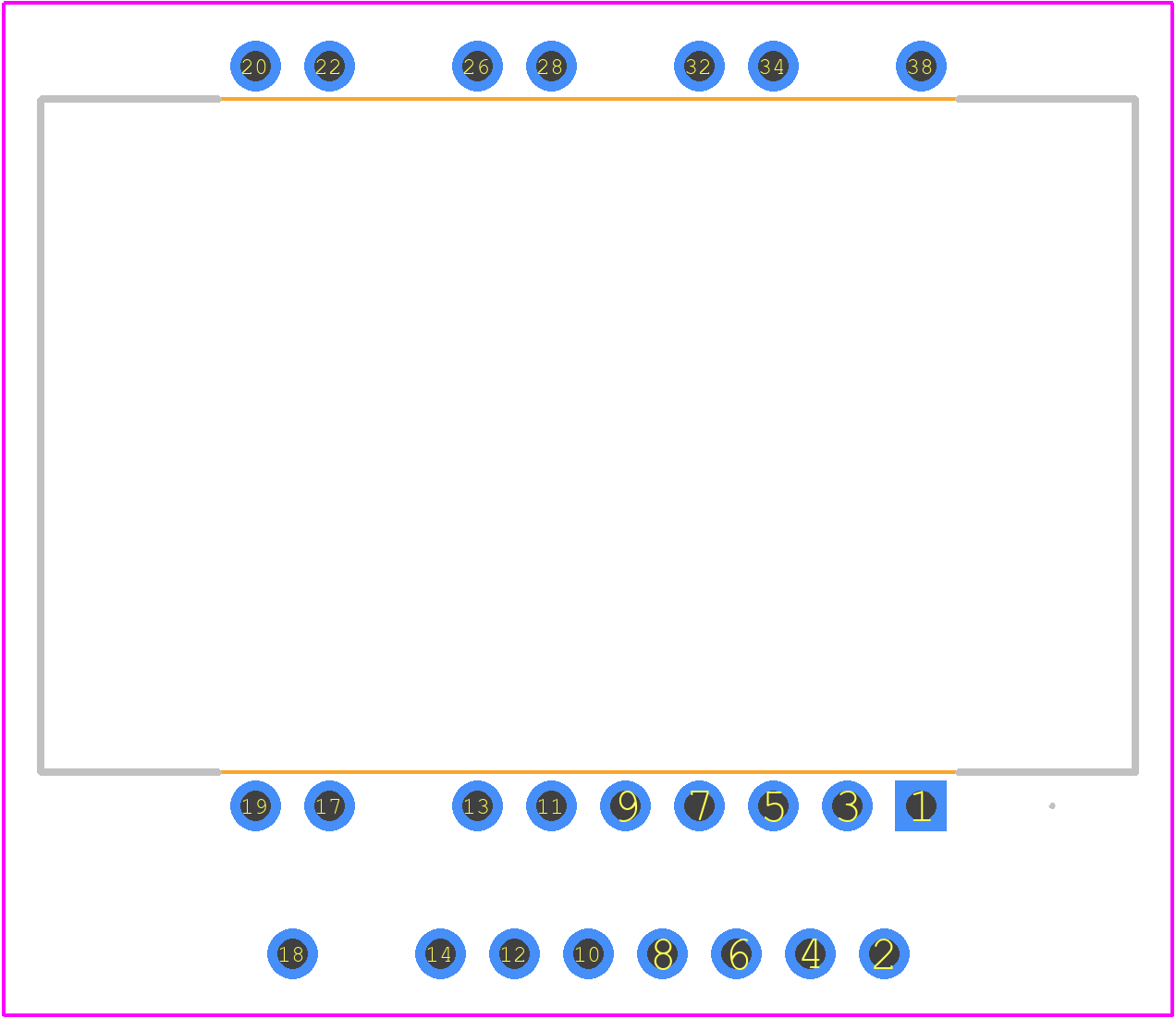

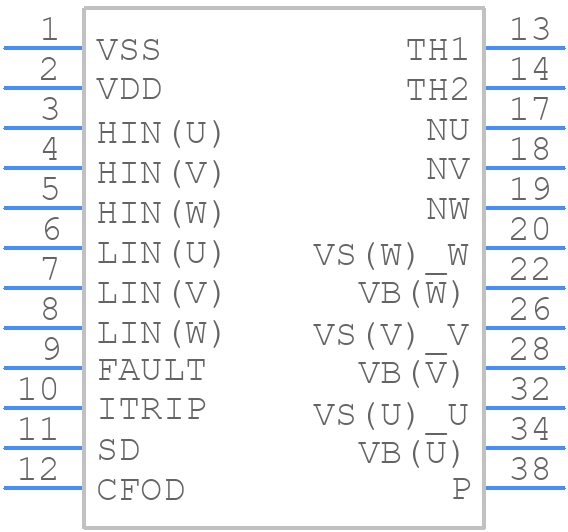

Use the download button to access the NFAQ0860L33T schematic symbol, PCB footprint, and 3D model.
