A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a thermal relief pattern under the device, and to connect the thermal pad to a large copper area on the bottom layer. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider using a thermal interface material (TIM) between the device and the heat sink. Additionally, ensure that the PCB is designed to withstand the high temperatures.
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the device with ESD-protective equipment, use ESD-protected workbenches, and follow proper ESD-handling procedures. Additionally, consider adding ESD protection devices, such as TVS diodes, to the PCB design.
The NFAQ0860L36T is an automotive-qualified device, and it meets the requirements for high-reliability applications. However, it's essential to follow the recommended operating conditions, and to ensure that the device is used within its specified ratings and guidelines.
To troubleshoot issues with the device, start by verifying that the device is used within its specified ratings and guidelines. Check the PCB layout, thermal design, and power supply connections. Use thermal imaging or temperature measurement tools to identify hotspots. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAQ0860L36T Overview

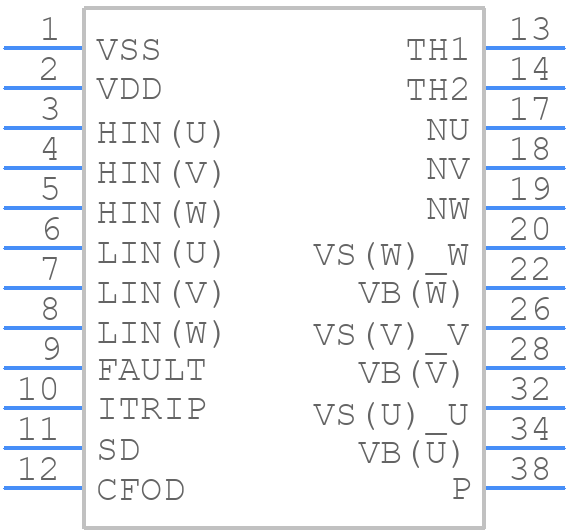

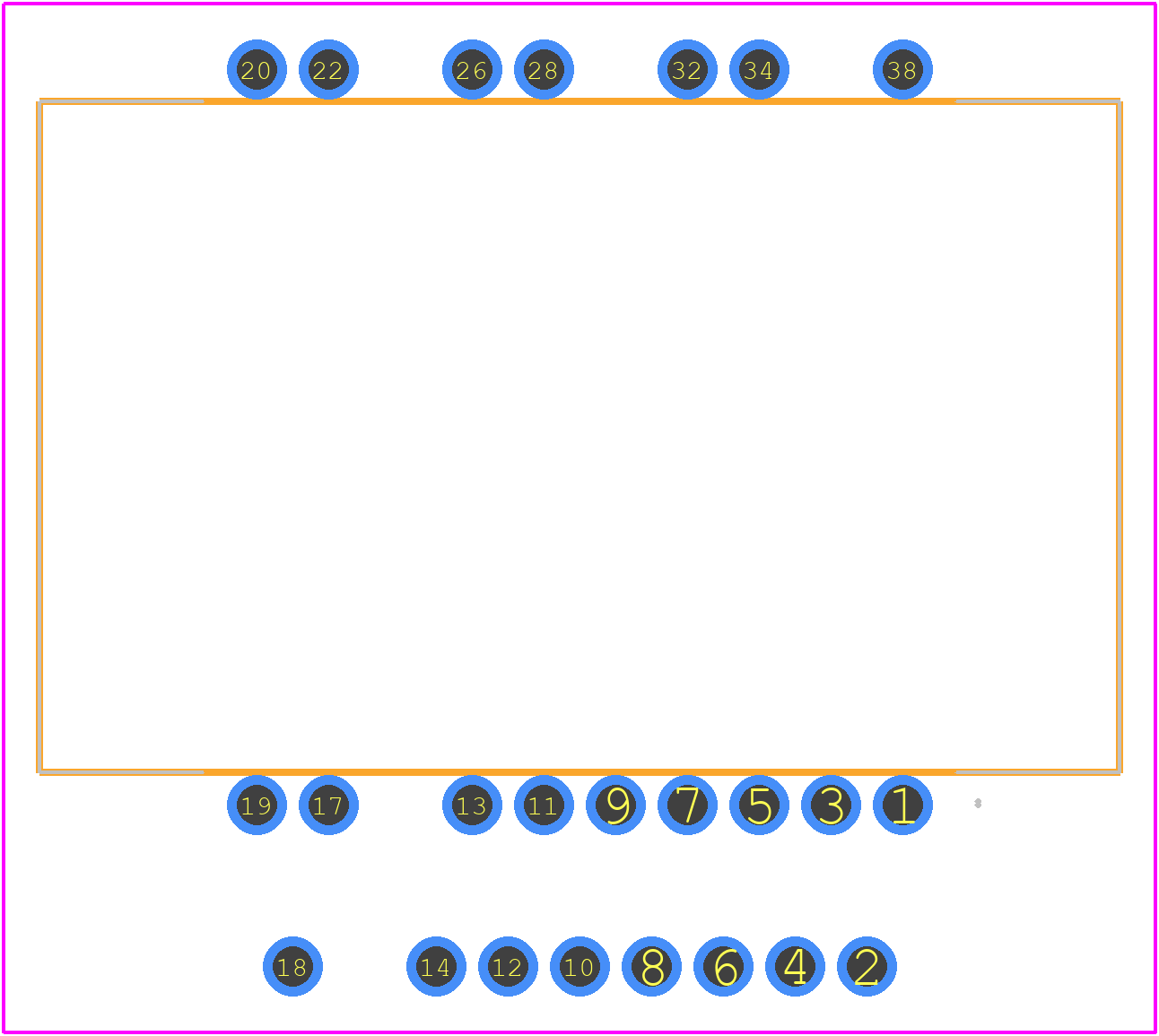

Use the download button to access the NFAQ0860L36T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAQ0,
or try a keyword search, such as Motion Control Electronics
