Description:Three-phase 10 A / 600 V IGBT module with integrated drivers using DBC substrate; Typical values: VCE(sat) = 1.9V, VF = 2.4V, ESW = 400 µJ at 10 A; Compact 29.6 mm x 18.2 mm dual in-line package; Adjustable over-current protection level; Integrated bootstrap diodes and resistors; NTC thermistor embedded; Long lead length (5.5mm, module bottom to pin end)
A good PCB layout for the NFAQ1060L33T should include a solid copper pour on the top and bottom layers, connected to the drain pin, to help dissipate heat. Additionally, a thermal relief pattern around the drain pin can improve thermal performance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Also, consider using a heat sink or thermal interface material to reduce thermal resistance.
Although the datasheet doesn't specify a maximum gate voltage, it's generally recommended to limit the gate voltage to ±20V to prevent damage to the internal gate oxide.
Yes, the NFAQ1060L33T is suitable for high-frequency switching applications due to its low gate charge (Qg) and internal gate resistance (Rg). However, ensure that the PCB layout and component selection are optimized for high-frequency operation.
To prevent electrostatic discharge (ESD) damage, handle the device with ESD-protective equipment, such as wrist straps or mats. Also, consider adding ESD protection components, like TVS diodes or ESD arrays, to the PCB design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAQ1060L33T Overview

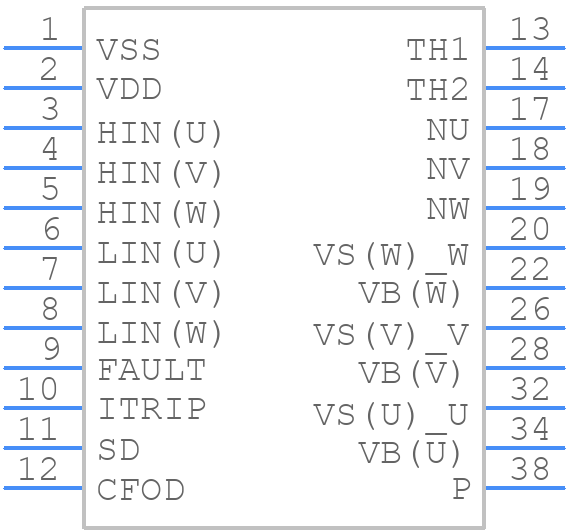

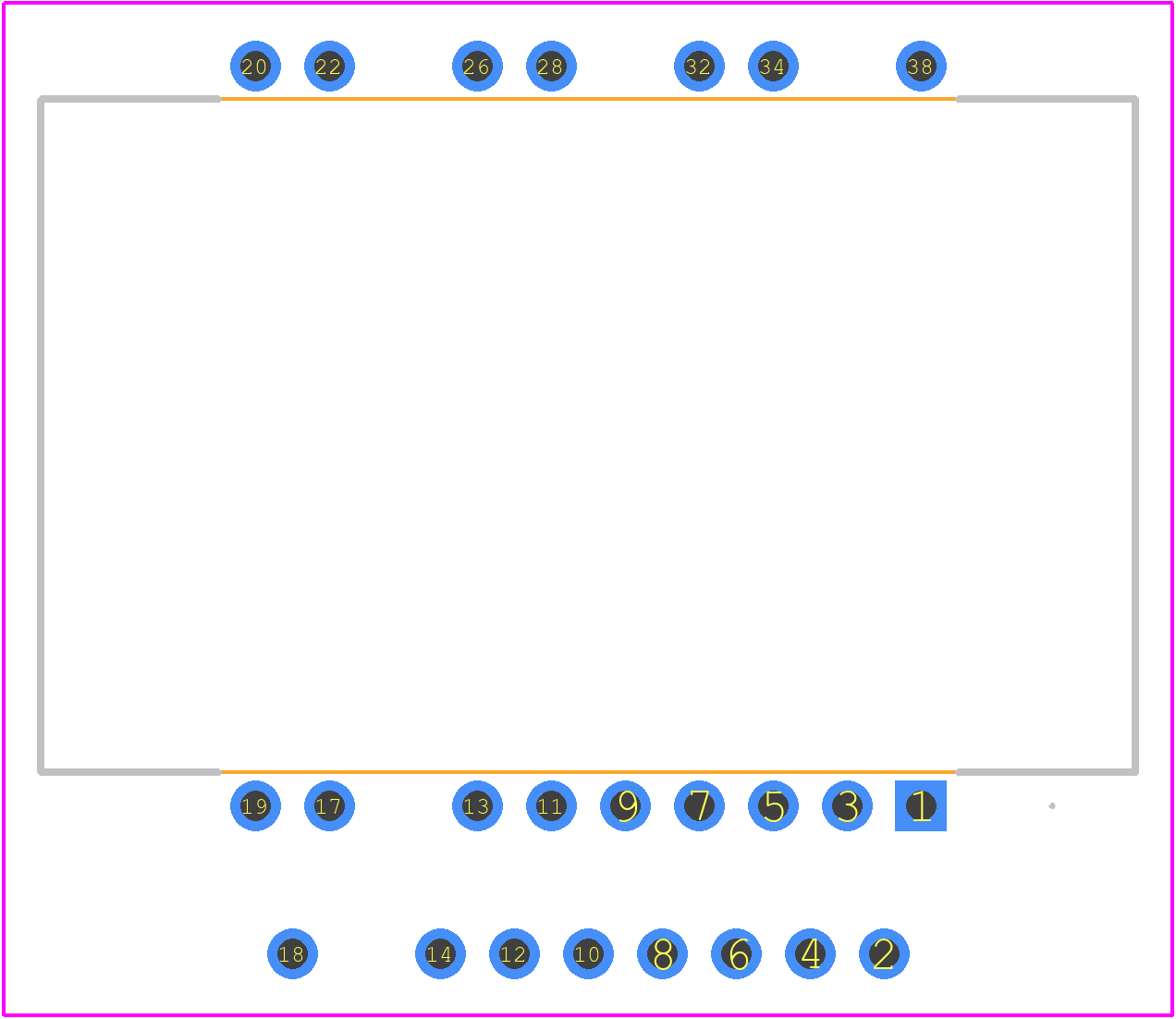

Use the download button to access the NFAQ1060L33T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAQ1,
or try a keyword search, such as Motion Control Electronics
