Description:Three-phase 10 A / 600 V IGBT module with integrated drivers using DBC substrate; Typical values: VCE(sat) = 1.9V, VF = 2.4V, ESW = 400 µJ at 10 A; Compact 29.6 mm x 18.2 mm dual in-line package; Adjustable over-current protection level; Integrated bootstrap diodes and resistors; Thermistor; Short lead length (3.4mm, module bottom to pin end)
A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane, and to place thermal vias under the device to dissipate heat effectively. Additionally, keeping the PCB traces as short and wide as possible can help reduce thermal resistance.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure to provide a stable voltage supply to the gate driver. Also, ensure that the gate-source voltage (Vgs) is within the recommended range of 10-15V, and the drain-source voltage (Vds) is within the recommended range of 0-600V.
Critical parameters to monitor during operation include the drain-source voltage (Vds), drain current (Id), and junction temperature (Tj). Monitoring these parameters can help prevent overheating, overvoltage, and overcurrent conditions that can damage the device.
To protect the NFAQ1060L36T from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind, such as using ESD diodes or resistors. Additionally, follow proper soldering and assembly procedures to prevent ESD damage during manufacturing.
The recommended cooling method for the NFAQ1060L36T is to use a heat sink with a thermal interface material (TIM) to improve heat transfer. The heat sink should be designed to provide adequate airflow and thermal conductivity to dissipate heat effectively.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAQ1060L36T Overview

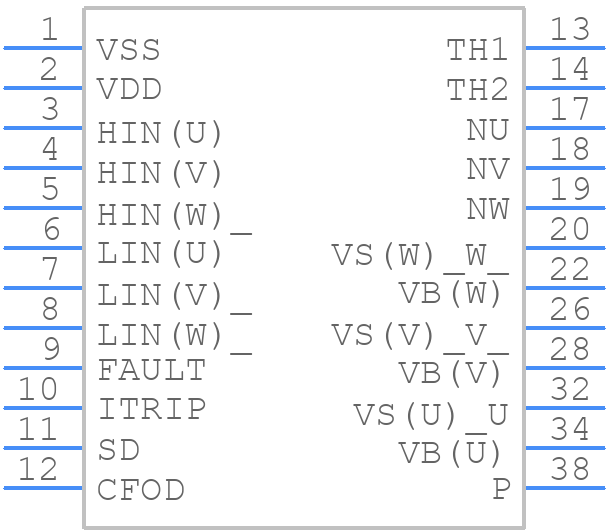

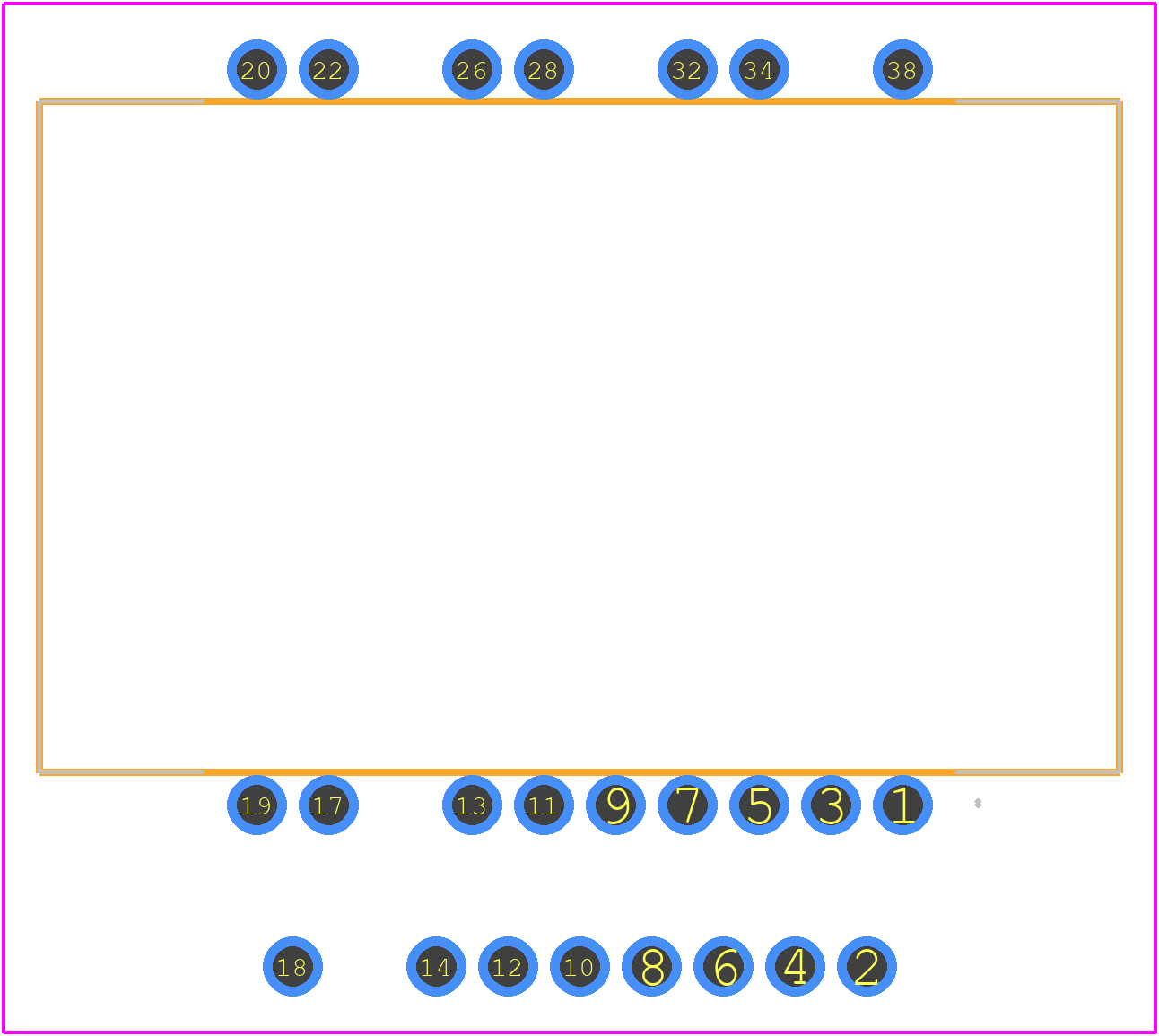

Use the download button to access the NFAQ1060L36T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAQ1,
or try a keyword search, such as Motion Control Electronics
