A recommended PCB layout for optimal thermal performance would be to use a 2-oz copper thickness, with a thermal relief pattern under the device, and a solid copper pour on the top and bottom layers. This will help to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material. Additionally, verify that the device is operated within the specified maximum junction temperature (Tj) of 150°C.
The recommended soldering conditions for the NFAQ1560R43T are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also recommended to use a solder with a melting point of 217°C or higher.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the leads or die, and use ESD-protected packaging and storage materials.
Using a different package type or variant may affect the device's thermal performance, power handling, and PCB layout requirements. It's essential to consult the datasheet and application notes for the specific package type or variant being used to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAQ1560R43T Overview

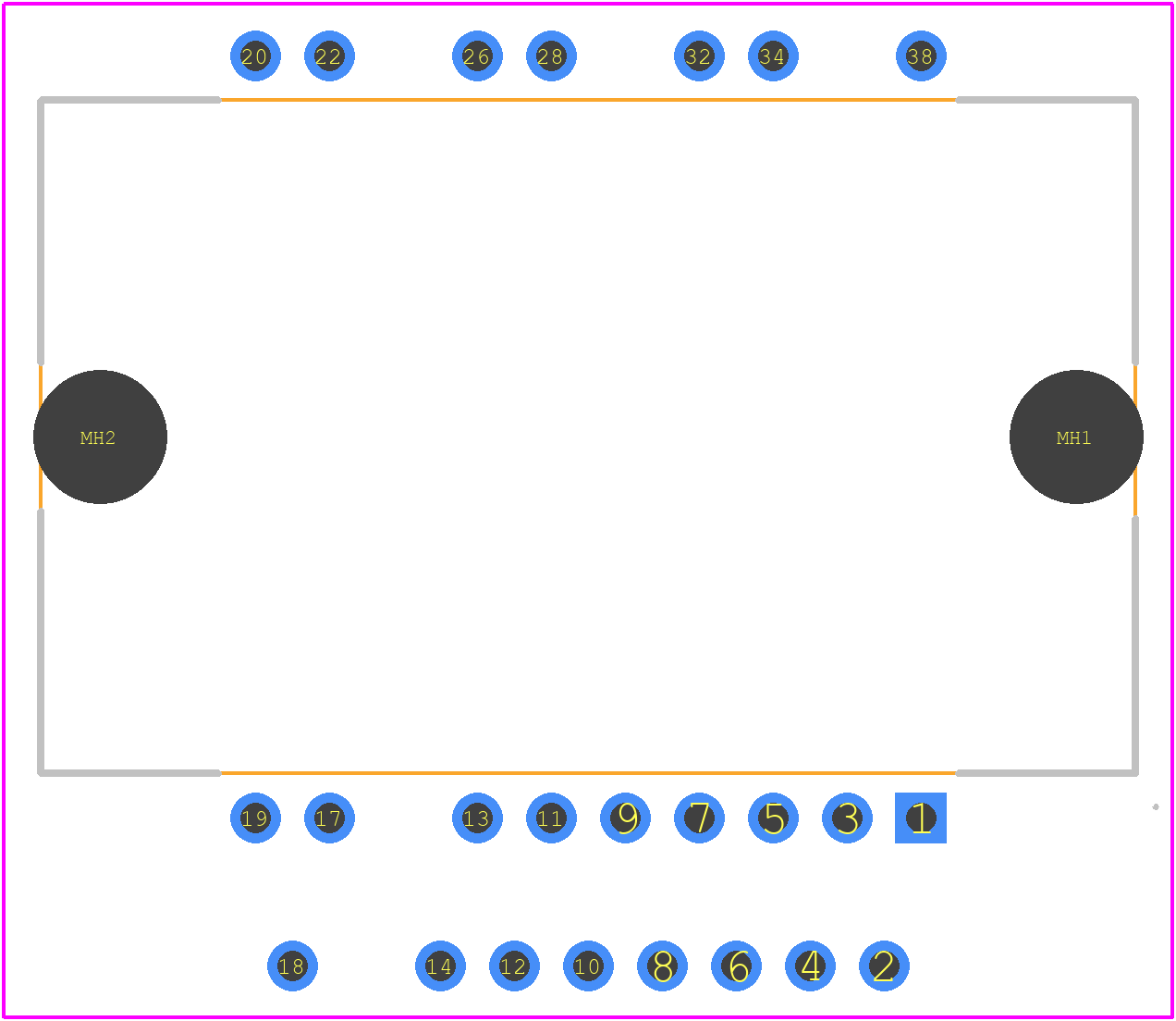

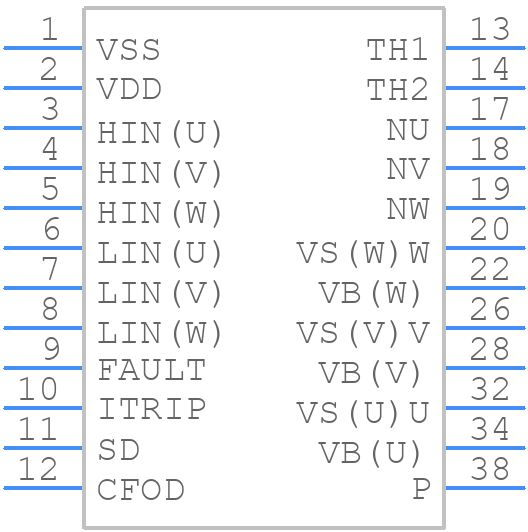

Use the download button to access the NFAQ1560R43T schematic symbol, PCB footprint, and 3D model.
