NFL25065L4BT - onsemi

Description: Power Driver Module IGBT 2 Phase 650 V 50 A 32-PowerDIP Module (1.370", 34.80mm)

Download NFL25065L4BT Model

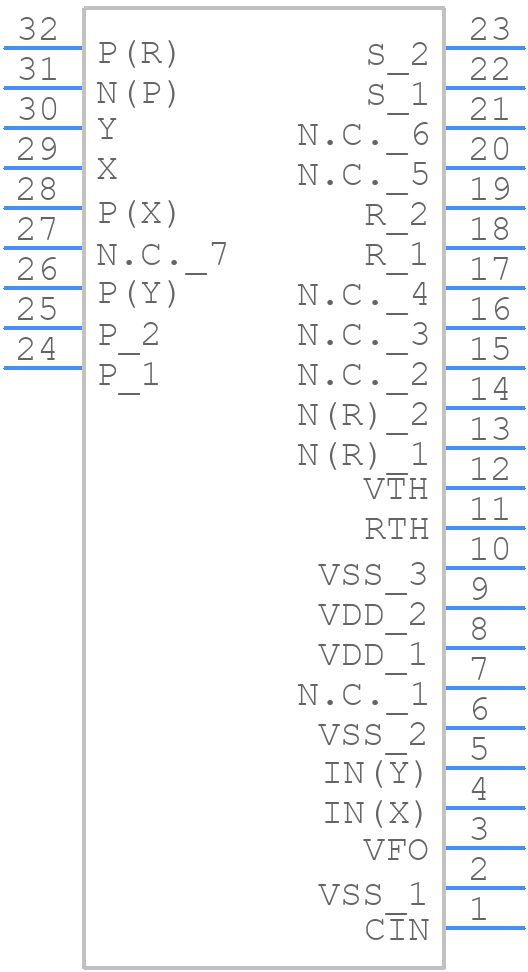

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

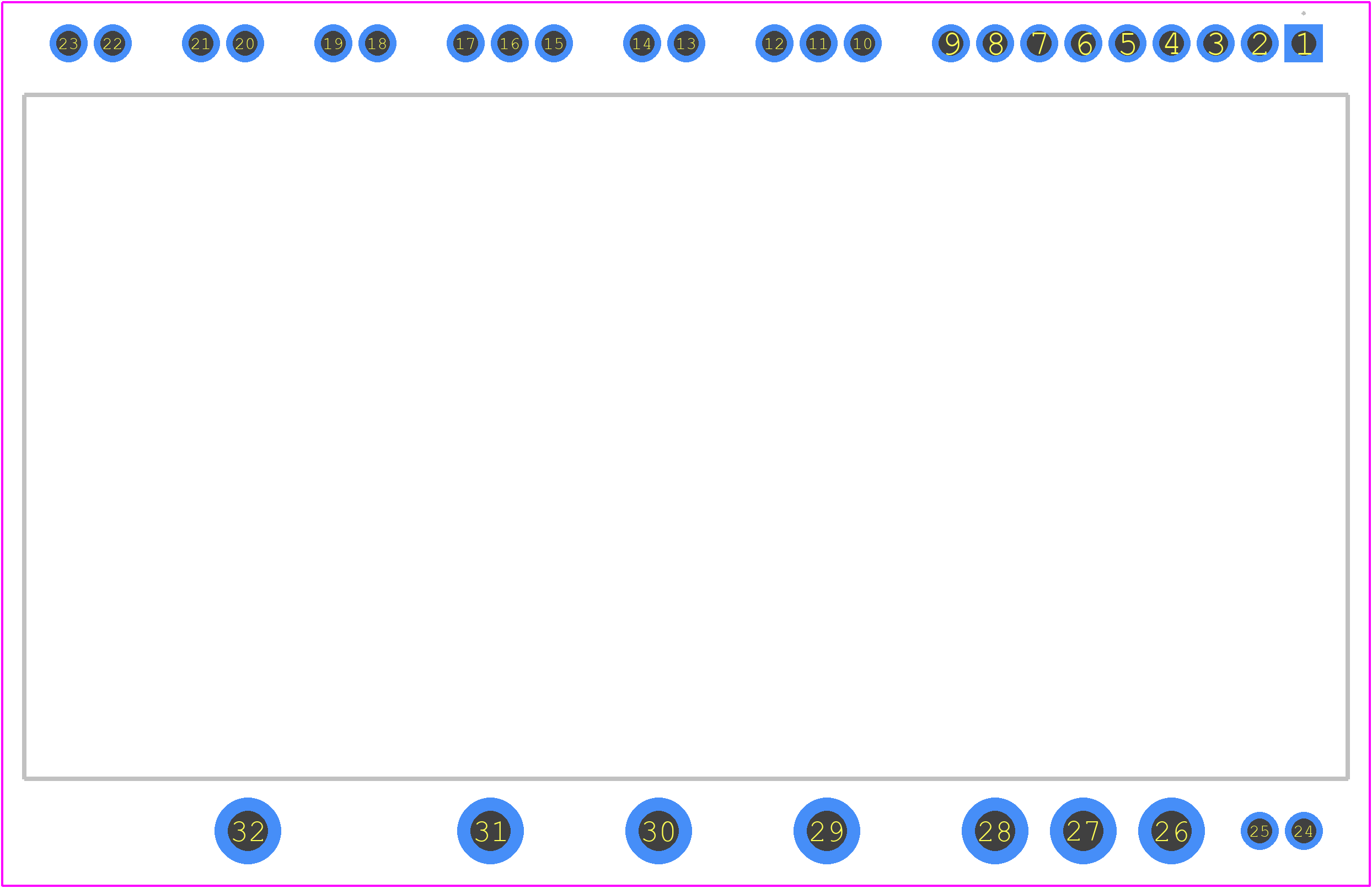

NFL25065L4BT - onsemi PCB footprint - Other - Other - S32CA−032 / 32LD,PDD STD, DBC, DIP TYPE (DBC AIN) CASE MODEB ISSUE O
click to zoom
3D Models
NFL25065L4BT - onsemi  - 3D model - Other - S32CA−032 / 32LD,PDD STD, DBC, DIP TYPE (DBC AIN) CASE MODEB ISSUE O
click to zoom

NFL25065L4BT Details

  • Manufacturer Part Number:

    NFL25065L4BT

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP-032

  • Package Description:

    DIP-32

  • Manufacturer Package Code:

    MODEB

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-05-13

  • Manufacturer:

    onsemi

  • YTEOL:

    9.6

  • Additional Feature:

    ALSO HAS INPUT SUPPLY VOLTAGE FROM 187VRMS TO 253 VRMS

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XDMA-T32

  • JESD-609 Code:

    e3

  • Length:

    60 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    100 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.7 mm

  • Supply Voltage-Max (Vsup):

    400 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

NFL25065L4BT Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the device, and using a thermal pad connected to the ground plane. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider derating the device's power handling capability at higher temperatures.
  • The NFL25065L4BT has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. A human body model (HBM) of 2 kV and a machine model (MM) of 200 V are recommended.
  • The NFL25065L4BT is rated for operation in a humidity range of 40% to 80% RH. However, it's recommended to follow proper moisture sensitivity level (MSL) handling procedures during assembly and storage to prevent damage.
  • The recommended soldering conditions for the NFL25065L4BT are a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method of wave soldering or reflow soldering.
