NFVA33065L42 - onsemi

Description: 650V / 30A 3−Phase IGBT Inverter with Integral Gate Drivers and Protections; Automotive qualified grade HV module (AEC−Q100, 101 & AQG324); 175°C guaranteed Short−Circuit Rated FS4 Trench IGBTs; Outstanding Thermal Resistance using Al2O3 DBC Substrate; Automotive SPM in 27 pin DIP package; Separated Open−Emitter Pins from Low−Side IGBTs for Three−Phase Current Sensing; Single−Grounded Power Supply; LVIC Temperature−Sensing Built−In for Temperature Monitoring; Isolation Rating: 2500 Vrms/1 min.

Download NFVA33065L42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

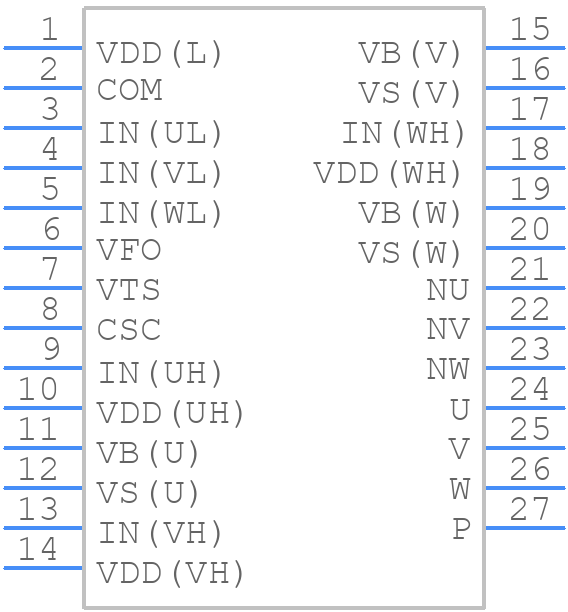

NFVA33065L42 - onsemi - PCB symbol
click to zoom
PCB Footprints

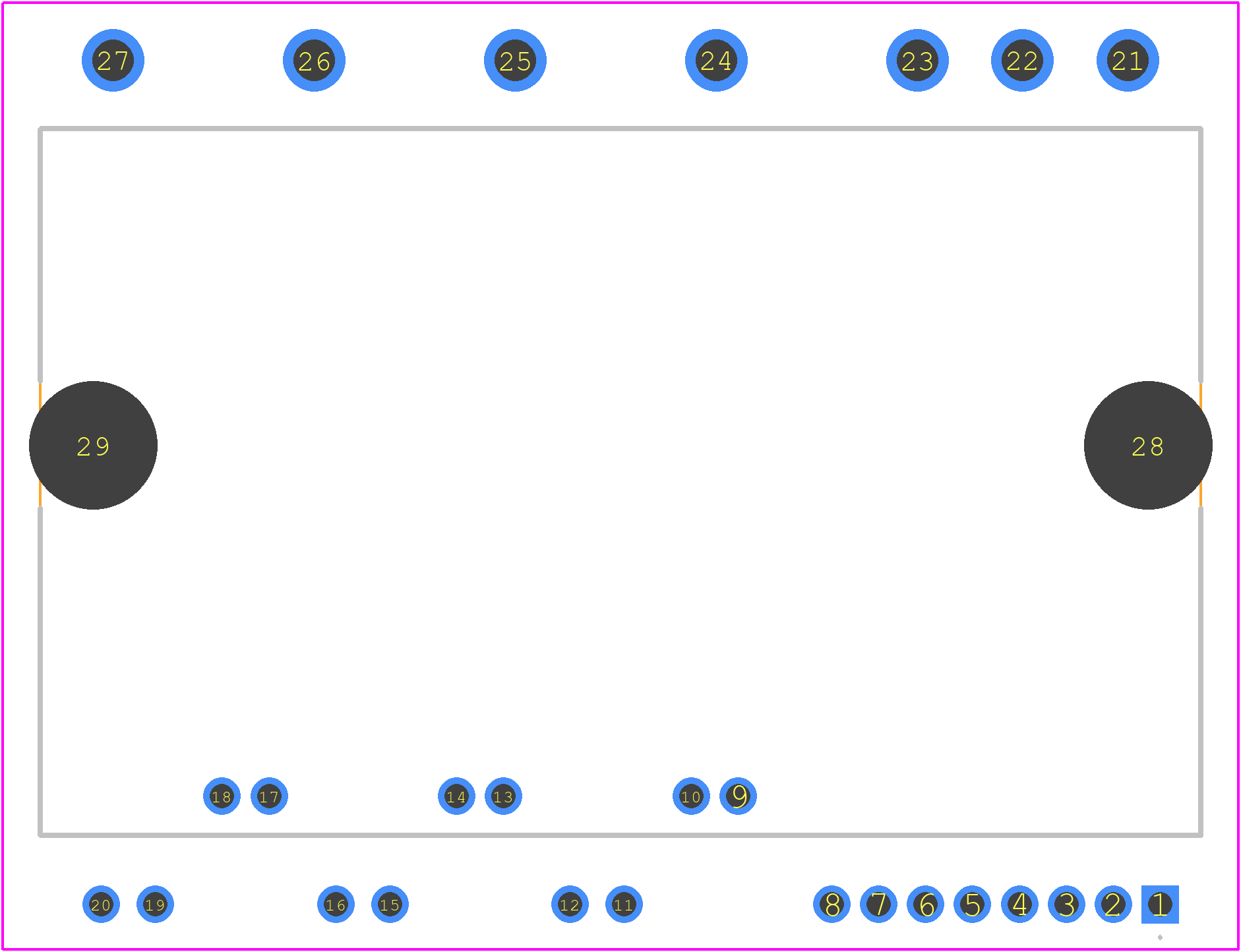

NFVA33065L42 - onsemi PCB footprint - Other - Other - 27LD MODULE PDD STD CASE MODCB
click to zoom
3D Models
NFVA33065L42 - onsemi - 3D model - Other - 27LD MODULE PDD STD CASE MODCB
click to zoom

NFVA33065L42 Details

  • Manufacturer Part Number:

    NFVA33065L42

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP-027

  • Manufacturer Package Code:

    MODCB

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFVA33065L42 Overview

Use the download button to access the NFVA33065L42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFVA3, or try a keyword search, such as Motion Control Electronics
