NFVF97565L1ZT1 - onsemi

Description: Very Low Thermal Resistance using AlN DBC Substrate; AQG324 Qualified and PPAP Capable

Download NFVF97565L1ZT1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NFVF97565L1ZT1 model

Email notifications will be applied after download.

Send part feedback

Symbol

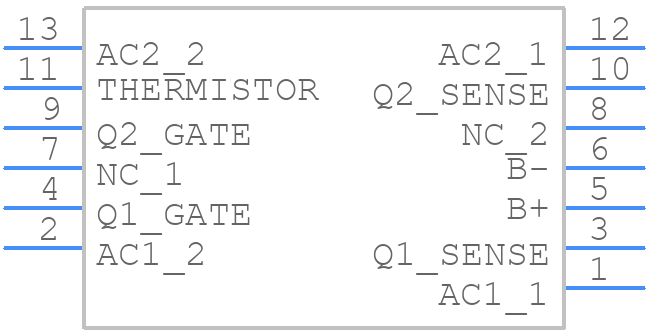

NFVF97565L1ZT1 - onsemi - PCB symbol

PCB Footprints

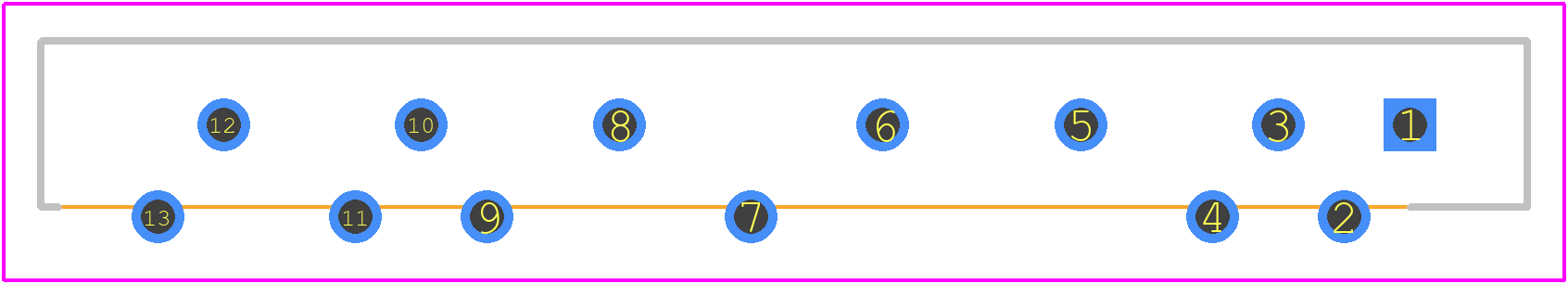

NFVF97565L1ZT1 - onsemi PCB footprint - Other - Other - ASPMCA−A16 / 13LD, AUTOMOTIVE MODULE CASE MODGH ISSUE B

3D Models

NFVF97565L1ZT1 - onsemi - 3D model - Other - ASPMCA−A16 / 13LD, AUTOMOTIVE MODULE CASE MODGH ISSUE B

Datasheet Download Datasheet
Stock & Prices Price & Stock for NFVF97565L1ZT1
Part Number NFVF97565L1ZT1
Manufacturer onsemi
Pin Count 13
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - ASPMCA−A16 / 13LD, AUTOMOTIVE MODULE CASE MODGH ISSUE B
Released Date Aug 2, 2023
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NFVF97565L1ZT1 Details

Manufacturer Part Number:
NFVF97565L1ZT1
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
ASPMCA-A16 / 13LD, AUTOMOTIVE MODULE
Manufacturer Package Code:
MODGH
ECCN Code:
EAR99
Factory Lead Time:
11 Weeks
Manufacturer:
onsemi
JESD-609 Code:
e3
Terminal Finish:
Matte Tin (Sn) - annealed
