NGTB25N120IHLWG - onsemi

Description: Obsolete - IGBT 1200V 25A FS1 Gen Mkt

Download NGTB25N120IHLWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

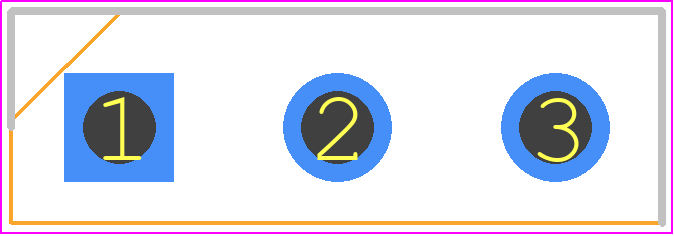

NGTB25N120IHLWG - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247 CASE 340L-02
click to zoom
3D Models
NGTB25N120IHLWG - onsemi  - 3D model - Transistor Outline, Vertical - TO-247 CASE 340L-02
click to zoom

NGTB25N120IHLWG Details

  • Manufacturer Part Number:

    NGTB25N120IHLWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-247

  • Pin Count:

    3

  • Manufacturer Package Code:

    340L-02

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    50 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Gate-Emitter Thr Voltage-Max:

    6.5 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    192 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    475 ns
