A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended operating conditions. Also, consider using a thermal interface material (TIM) between the device and heat sink.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
Yes, the NIS5112D1R2G is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout, decoupling, and filtering to minimize electromagnetic interference (EMI).
Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Also, follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS5112D1R2G Overview

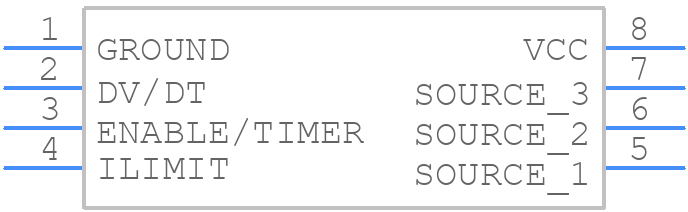

Use the download button to access the NIS5112D1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS51,
or try a keyword search, such as Power Management Circuits
