NIS5135MN1TXG - onsemi

Description: • Integrated Power Device • Power Device Thermally Protected • No External Current Shunt Required • 68 m Typical • Internal Charge Pump • Internal Undervoltage Lockout Circuit • Internal Overvoltage Clamp

Download NIS5135MN1TXG Model

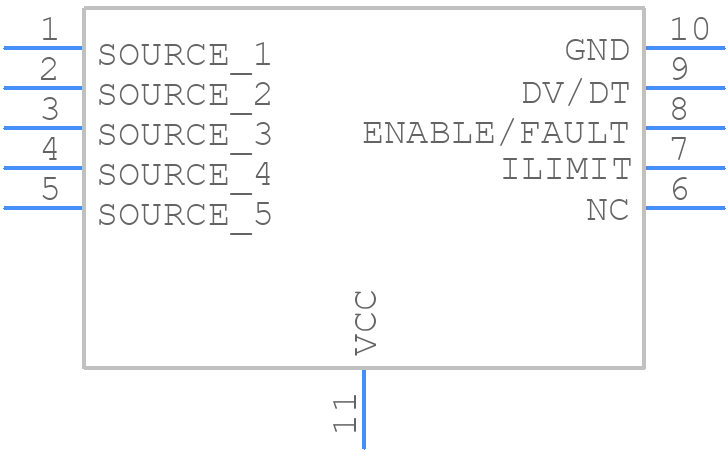

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NIS5135MN1TXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom
3D Models
NIS5135MN1TXG - onsemi  - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom

NIS5135MN1TXG Details

  • Manufacturer Part Number:

    NIS5135MN1TXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DFN10, 3x3, 0.5P

  • Pin Count:

    10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm
