NIS5420MT1TXG - onsemi

Description: Current sensing (ISENSE); Low quiescent current; Tri-state EN/FLT pin; Programmable current limit; Programmable slew rate

Download NIS5420MT1TXG Model

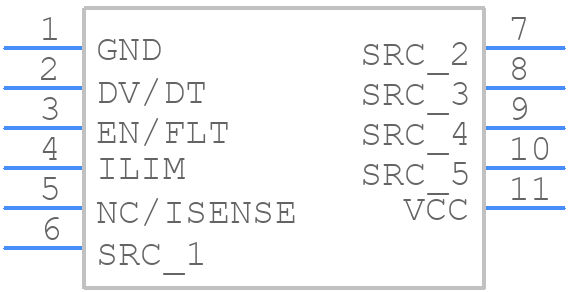

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NIS5420MT1TXG - onsemi PCB footprint - Other - Other - WDFN10, 3x3, 0.5P CASE 522AA ISSUE A_2026
click to zoom
3D Models
NIS5420MT1TXG - onsemi  - 3D model - Other - WDFN10, 3x3, 0.5P CASE 522AA ISSUE A_2026
click to zoom

NIS5420MT1TXG Details

  • Manufacturer Part Number:

    NIS5420MT1TXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    522AA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2020-02-05

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NIS5420MT1TXG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
  • Yes, the NIS5420MT1TXG is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within its recommended operating conditions and follow the recommended PCB layout.
  • Check the input voltage, output load, and PCB layout. Ensure that the device is properly decoupled and that the output capacitor is of sufficient value. Also, verify that the device is not overheating.
