The recommended PCB layout involves keeping the device away from high-current paths, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended, and the PCB should be designed to dissipate heat efficiently.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is properly decoupled from the power supply. Additionally, consider using a common-mode choke and TVS diodes for ESD protection.
The OCP feature has a response time of around 1-2 μs, and it may not protect against very high-frequency or high-energy surges. Additionally, the OCP threshold is fixed and cannot be adjusted. It's recommended to use external protection components for more robust protection.
Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly configured and that the output voltage is within the specified range. Use an oscilloscope to measure the output voltage and check for any oscillations or noise.
A low-ESR ceramic capacitor with a value of 10-22 μF is recommended for the input capacitor. The capacitor should be placed close to the device's input pins and should be rated for the input voltage and operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS5420MT2TXG Overview

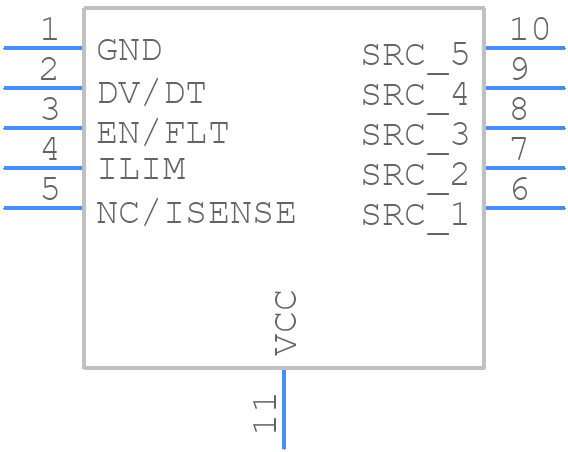

Use the download button to access the NIS5420MT2TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS54,
or try a keyword search, such as Power Management Circuits
