NIV3071MTW3TWG - onsemi

Description: 4 independent channels; Adjustable current limit; Thermal shutdown protection; Slew rate control; Fault; Enable; Undervoltage lockout

Download NIV3071MTW3TWG Model
Schematic

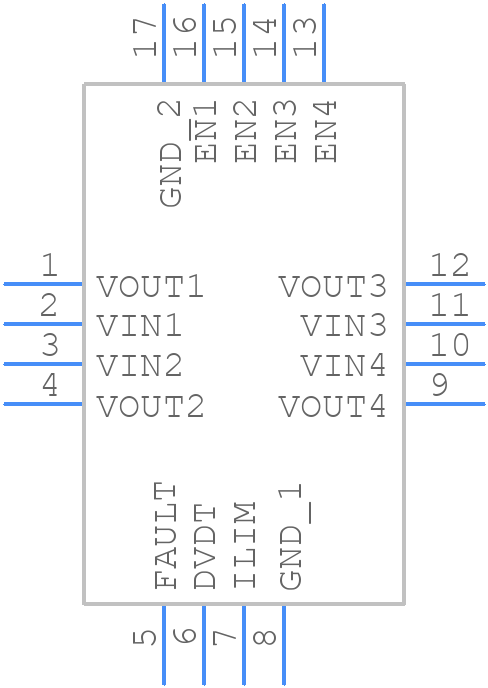

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NIV3071MTW3TWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN16 5x6, 1.05P CASE 510CM ISSUE O
click to zoom
3D Models
NIV3071MTW3TWG - onsemi  - 3D model - Quad Flat No-Lead - WQFN16 5x6, 1.05P CASE 510CM ISSUE O
click to zoom

NIV3071MTW3TWG Details

  • Manufacturer Part Number:

    NIV3071MTW3TWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFNW16 5x6, 1.05P

  • Manufacturer Package Code:

    512AN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    eFUSE

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NIV3071MTW3TWG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NIV3071MTW3TWG should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in onsemi's application note AND9093/D.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and derating the device's power dissipation according to the datasheet's thermal derating curve.
  • The recommended soldering conditions for the NIV3071MTW3TWG are a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a soldering time of 3-5 seconds. It's also essential to follow the JEDEC J-STD-020 standard for reflow soldering.
  • Yes, the NIV3071MTW3TWG is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using onsemi's automotive-qualified process. However, it's essential to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot common issues with the NIV3071MTW3TWG, start by reviewing the datasheet and application notes for proper usage and design guidelines. Check for proper thermal design, PCB layout, and soldering. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, consult with onsemi's technical support team for further assistance.
