NLPS22990MN1TAG - onsemi

Description: VBIAS Voltage Range: 2.5 V to 5.5 V; VIN Voltage Range: 0.6 V to VBIAS; RON = 3.9 mΩ (typical) at VIN = 5 V (VBIAS = 5 V); RON = 3.9 mΩ (typical) at VIN = 3.3 V (VBIAS = 3.3 V); 10-A Maximum Continuous Switch Current; IQ,VBIAS = 63 μA at VBIAS = 5 V; ISD,VBIAS = 5.5 μA at VBIAS = 5 V; ISD,VIN = 4 nA at VBIAS = 5 V, VIN = 5 V; Controlled and Adjustable Slew Rate through CT; Power Good (PG) Indicator; Quick Output Discharge (QOD); 3-mm × 2-mm WQFN 10-pin Package with Thermal Pad; ESD Performance Tested per JE

Download NLPS22990MN1TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

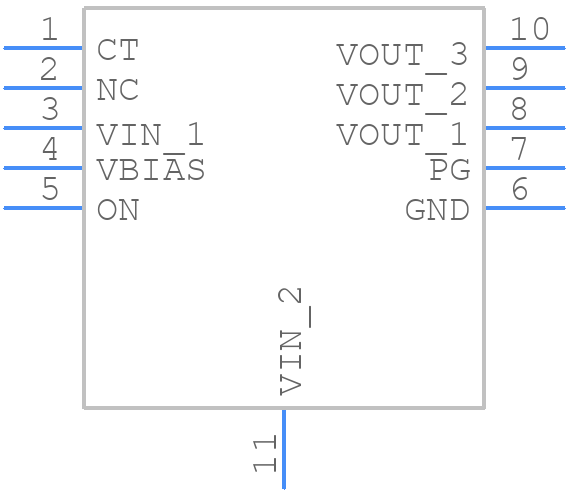

NLPS22990MN1TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NLPS22990MN1TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN10
click to zoom
3D Models
NLPS22990MN1TAG - onsemi - 3D model - Small Outline No-lead - WDFN10
click to zoom

NLPS22990MN1TAG Details

  • Manufacturer Part Number:

    NLPS22990MN1TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    WDFN-10

  • Manufacturer Package Code:

    511DX

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    R-XDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NLPS22990MN1TAG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the onsemi application note AND9173/D for more details.
  • The device requires a power-on reset (POR) circuit to ensure proper startup. A 10uF capacitor on the VCC pin and a 1kΩ resistor on the EN pin are recommended. Consult the onsemi application note AND9173/D for a detailed startup sequence.
  • The maximum allowed voltage on the input pins is 6V. Exceeding this voltage may cause damage to the device. Ensure that the input voltage is within the recommended operating range.
  • Check the input voltage, output voltage, and feedback resistors for correct configuration. Verify that the device is properly powered up and configured. Consult the onsemi application note AND9173/D for troubleshooting guidelines.
  • The recommended operating temperature range for the NLPS22990MN1TAG is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
