NST65011MW6T1G - onsemi

Description: Base−Emitter Voltage Matched to 2 mV; Current Gain Matching to 10%; Drop−In Replacement for Standard Device; NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download NST65011MW6T1G Model

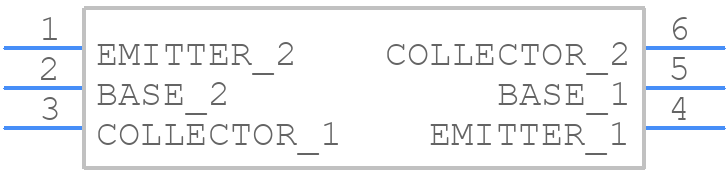

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NST65011MW6T1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - NST65011MW6T1G-1
click to zoom
3D Models
NST65011MW6T1G - onsemi  - 3D model - SOT23 (6-Pin) - NST65011MW6T1G-1
click to zoom

NST65011MW6T1G Details

  • Manufacturer Part Number:

    NST65011MW6T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88-6 / SC-70-6 / SOT-363-6

  • Manufacturer Package Code:

    419B-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    4.5 pF

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.38 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

  • VCEsat-Max:

    0.6 V

NST65011MW6T1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
  • Yes, the NST65011MW6T1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended design and testing guidelines for these applications.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly decoupled and that the output capacitor is of sufficient value and type. Consult the datasheet and application notes for troubleshooting guidelines.
