The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring good thermal conduction to the surrounding copper area. A thermal via array can also be used to improve heat dissipation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
The NSVF6003SB6T1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap, mat, or workstation, and avoiding direct contact with the device pins.
Yes, the NSVF6003SB6T1G is suitable for high-reliability and automotive applications. It's AEC-Q101 qualified and meets the requirements for automotive-grade devices. However, it's essential to follow the recommended operating conditions and ensure that the device is used within its specified ratings.
The optimal gate resistor value depends on the specific application requirements, including the switching frequency, voltage, and current. A general guideline is to use a gate resistor value between 10Ω and 100Ω. However, it's recommended to consult the application note or seek guidance from onsemi's technical support team for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NSVF6003SB6T1G Overview

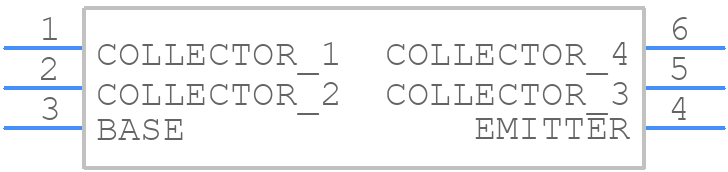

Use the download button to access the NSVF6003SB6T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSVF6,
or try a keyword search, such as RF Small Signal Bipolar Transistors
