NSVMUN5314DW1T3G - onsemi

Description: Simplifies Circuit Design; Reduces Board Space; Reduces Component Count; S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Download NSVMUN5314DW1T3G Model

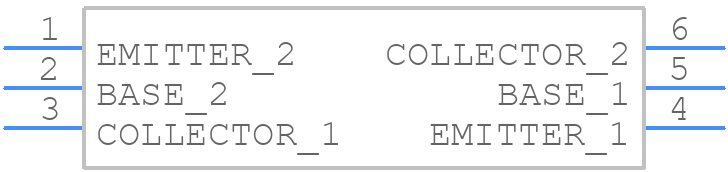

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSVMUN5314DW1T3G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - NSVMUN5314DW1T3G
click to zoom
3D Models
NSVMUN5314DW1T3G - onsemi  - 3D model - SOT23 (6-Pin) - NSVMUN5314DW1T3G
click to zoom

NSVMUN5314DW1T3G Details

  • Manufacturer Part Number:

    NSVMUN5314DW1T3G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88-6 / SC-70-6 / SOT-363-6

  • Manufacturer Package Code:

    419B-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.385 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NSVMUN5314DW1T3G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NSVMUN5314DW1T3G is -55°C to 150°C.
  • To ensure safe operating area, follow the guidelines in the datasheet for voltage, current, and power dissipation. Additionally, consider the device's thermal characteristics and ensure proper heat sinking.
  • The recommended gate drive voltage for the NSVMUN5314DW1T3G is between 10V and 15V to ensure optimal switching performance.
  • To minimize EMI, use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, using ground planes, and adding EMI filters or shielding if necessary.
  • The maximum allowed voltage for the gate-source (Vgs) and gate-drain (Vgd) pins is ±20V to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSVMUN5314DW1T3G Overview

Use the download button to access the NSVMUN5314DW1T3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSVMU, or try a keyword search, such as Small Signal Bipolar Transistors
