Description:Base−Emitter Voltage Matched to 2 mV; Current Gain Matching to 10%; Drop−In Replacement for Standard Device; NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
The recommended PCB layout involves placing the device near the edge of the board, using a solid ground plane, and minimizing thermal resistance. A thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB. A heat sink or thermal interface material can be used to further improve thermal management.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power dissipation. Additionally, using a thermal interface material and ensuring good airflow can help maintain a safe junction temperature.
The NSVT65011MW6T1G has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Avoid touching the device's pins or exposed die, and handle the device by the package body only.
The NSVT65011MW6T1G is a commercial-grade device, but onsemi offers other versions with enhanced reliability and automotive-grade qualifications. For high-reliability or automotive applications, consider using the NSVT65011MW6T1G-Q or NSVT65011MW6T1G-AQ, which have undergone additional testing and qualification.
To troubleshoot and debug issues with the NSVT65011MW6T1G, start by reviewing the datasheet and application notes. Check the device's pinout, voltage supply, and input/output signals. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the issue. Consult onsemi's technical support resources or seek assistance from a qualified engineer if needed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NSVT65011MW6T1G Overview

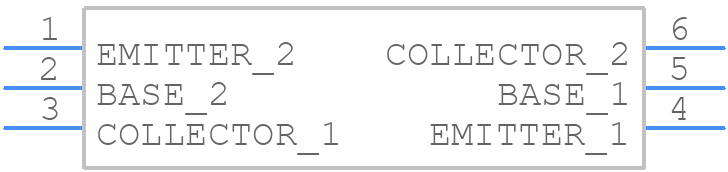

Use the download button to access the NSVT65011MW6T1G schematic symbol, PCB footprint, and 3D model.
