NT5CB128M16JR-FL - Nanya

Description: Automotive DDR3(L) 2Gb SDRAM

Download NT5CB128M16JR-FL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

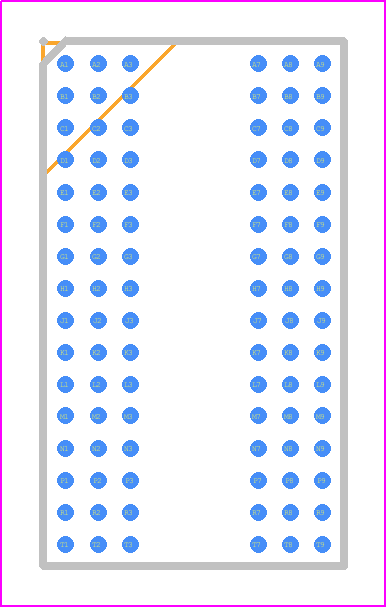

NT5CB128M16JR-FL - Nanya PCB footprint - BGA - BGA - 96 Ball TFBGA
click to zoom
3D Models
NT5CB128M16JR-FL - Nanya  - 3D model - BGA - 96 Ball TFBGA
click to zoom

NT5CB128M16JR-FL Details

  • Manufacturer Part Number:

    NT5CB128M16JR-FL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-96

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Date Of Intro:

    2017-11-30

  • Manufacturer:

    Nanya Technology Corporation

  • YTEOL:

    4

  • Access Mode:

    MULTI BANK PAGE BURST

  • Clock Frequency-Max (fCLK):

    1066 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    8

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    13 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    DDR3 DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Organization:

    128MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA96,9X16,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    8

  • Standby Current-Max:

    0.011 A

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    1.575 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm

NT5CB128M16JR-FL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for NT5CB128M16JR-FL is 0°C to 95°C.
  • To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal behavior and optimize the PCB design. Additionally, following the JEDEC standard for DDR3 SDRAM signal routing and termination is crucial.
  • The refresh interval for NT5CB128M16JR-FL is 64ms, which is a standard refresh interval for DDR3 SDRAM.
  • No, NT5CB128M16JR-FL is designed to operate at a voltage supply of 1.5V ± 0.075V. Using it with a different voltage supply may damage the device or affect its performance.
  • The ZQ calibration is done internally by the DDR3 SDRAM during power-up. No external calibration is required. However, it is recommended to follow the JEDEC standard for ZQ calibration to ensure proper operation.
