NT6AN256T32AV-J2 - Nanya

Description: LPDDR4x 8GB

Download NT6AN256T32AV-J2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

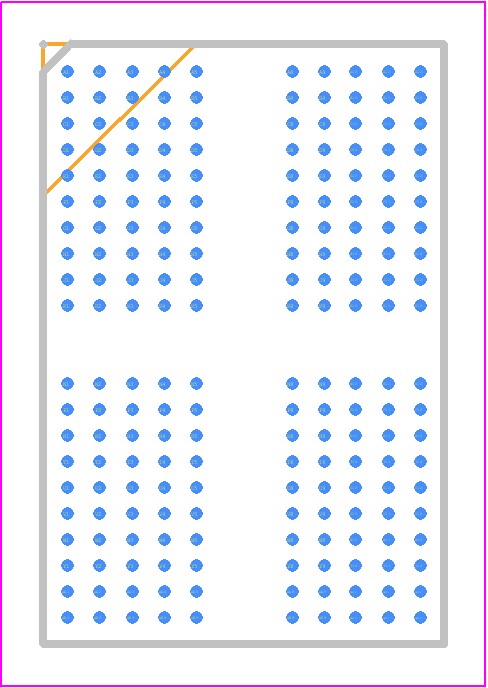

NT6AN256T32AV-J2 - Nanya PCB footprint - BGA - BGA - bga-200
click to zoom
3D Models
NT6AN256T32AV-J2 - Nanya  - 3D model - BGA - bga-200
click to zoom

NT6AN256T32AV-J2 Details

  • Manufacturer Part Number:

    NT6AN256T32AV-J2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Nanya Technology Corporation

  • YTEOL:

    5

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    AUTO/SELF REFRESH, IT ALSO REQUIRES 1.8V NOMINAL SUPPLY VOLTAGE, TERM PITCH-MAX

  • Clock Frequency-Max (fCLK):

    1866 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    16,32

  • JESD-30 Code:

    R-PBGA-B200

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Memory Density:

    8589934592 bit

  • Memory IC Type:

    LPDDR4 DRAM

  • Memory Width:

    32

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    200

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Organization:

    256MX32

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA200,12X22,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    0.83 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    16,32

  • Standby Current-Max:

    0.025 A

  • Supply Current-Max:

    0.58 mA

  • Supply Voltage-Max (Vsup):

    1.17 V

  • Supply Voltage-Min (Vsup):

    1.06 V

  • Supply Voltage-Nom (Vsup):

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

NT6AN256T32AV-J2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for NT6AN256T32AV-J2 is 0°C to 95°C.
  • To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, follow the recommended routing and termination guidelines provided in the datasheet.
  • The recommended refresh rate for NT6AN256T32AV-J2 is 8192 refreshes per second, with a refresh interval of 7.8us.
  • No, NT6AN256T32AV-J2 is designed to operate at a voltage supply of 1.5V ± 0.075V. Using it with a different voltage supply may damage the device or affect its performance.
  • Implement an error detection and correction mechanism, such as ECC (Error-Correcting Code), to detect and correct errors. For retries, implement a retry mechanism that follows the JEDEC standard for DDR3 SDRAM.
