NTBG014N120M3P - onsemi

Description: D2PAK-7L package for low common source inductance; 15V to 18V Gate Drive; New M3P technology: 14mohm RDS(ON) with low EON and EOFF losses; 100% Avalanche Tested

Download NTBG014N120M3P Model

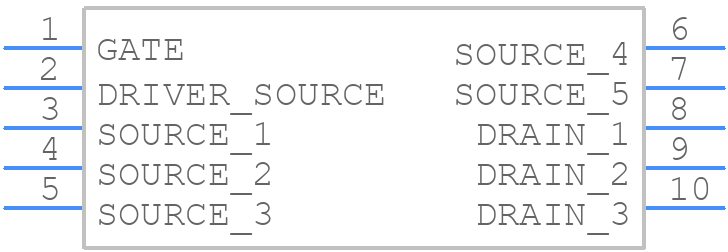

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

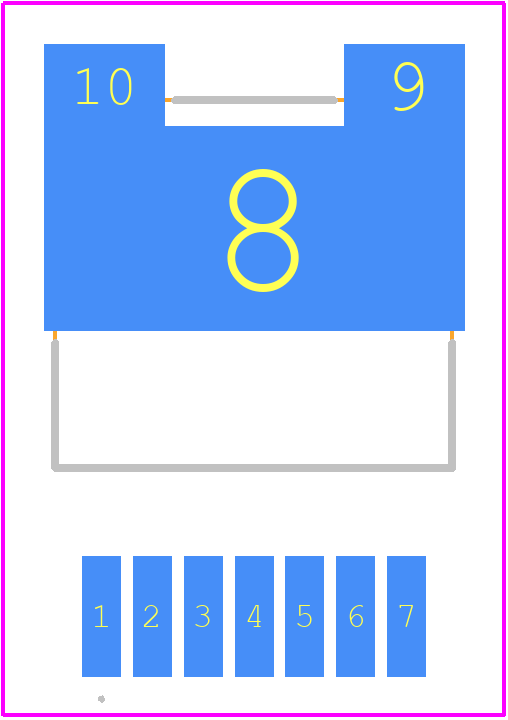

NTBG014N120M3P - onsemi PCB footprint - Other - Other - NTBG014N120M3P-2
click to zoom
3D Models
NTBG014N120M3P - onsemi  - 3D model - Other - NTBG014N120M3P-2
click to zoom

NTBG014N120M3P Details

  • Manufacturer Part Number:

    NTBG014N120M3P

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.82

  • Avalanche Energy Rating (Eas):

    418 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    104 A

  • Drain-source On Resistance-Max:

    0.02 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    27 pF

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    454 W

  • Pulsed Drain Current-Max (IDM):

    257 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

NTBG014N120M3P Frequently Asked Questions (FAQs)

  • The maximum junction temperature for NTBG014N120M3P is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of 1°C/W or lower, and ensuring good airflow around the device. Additionally, the device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
  • The recommended gate drive voltage for NTBG014N120M3P is between 10V and 15V. This ensures proper switching and minimizes the risk of damage to the device.
  • Yes, NTBG014N120M3P is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, thermal performance, and PCB layout to ensure reliable operation.
  • To protect the device, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) to limit voltage spikes. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
