NTBG015N065SC1 - onsemi

Description: RoHS Compliant; High Speed Switching and Low Capacitance; 650V rated; Max RDS(on) = 18.4 mΩ at Vgs = 18V, Id = 60A; Low RDSon; High Junction Temperature; 100% UIL Tested

Download NTBG015N065SC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

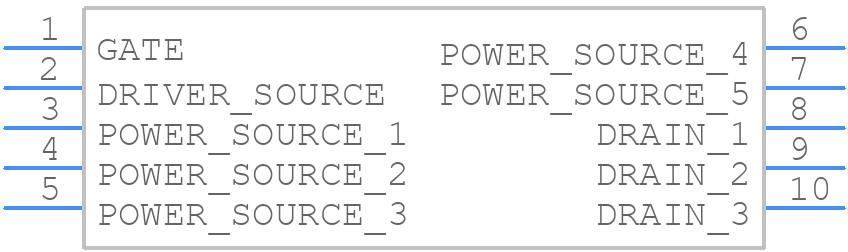

Symbol
NTBG015N065SC1 - onsemi - PCB symbol
click to zoom

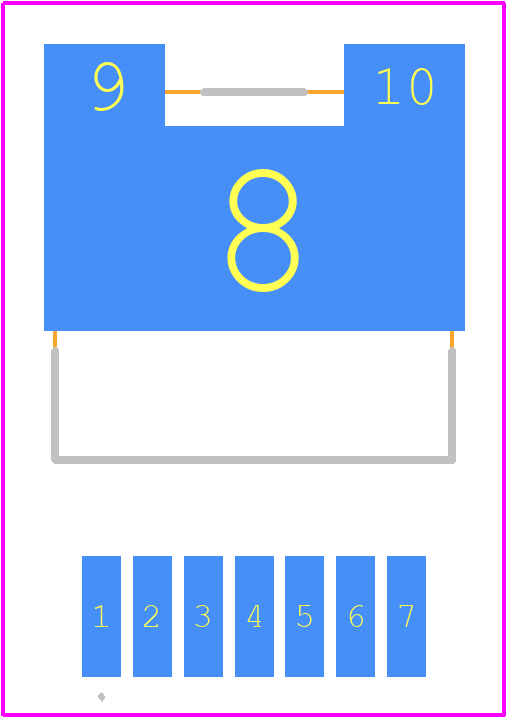

PCB Footprints
NTBG015N065SC1 - onsemi PCB footprint - Other - Other - D2PAK−7L_2022
click to zoom
3D Models
NTBG015N065SC1 - onsemi - 3D model - Other - D2PAK−7L_2022
click to zoom

NTBG015N065SC1 Details

  • Manufacturer Part Number:

    NTBG015N065SC1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Package Description:

    D2PAK-7

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-03-31

  • Manufacturer:

    onsemi

  • YTEOL:

    6.15

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    176 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    39.42 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    867 W

  • Pulsed Drain Current-Max (IDM):

    873 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON CARBIDE

NTBG015N065SC1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the NTBG015N065SC1 is 150°C. However, it's recommended to operate the device at a temperature below 125°C for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
  • The recommended input capacitor value for the NTBG015N065SC1 is 1uF to 10uF, depending on the input voltage and the desired level of noise filtering. A higher capacitance value can help to reduce input voltage ripple and noise.
  • Yes, the NTBG015N065SC1 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
  • To protect the NTBG015N065SC1 from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC that can detect and respond to voltage faults. Additionally, a voltage clamp or a transient voltage suppressor can be used to protect the device from voltage transients.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTBG015N065SC1 Overview

Use the download button to access the NTBG015N065SC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBG0, or try a keyword search, such as Power Field-Effect Transistors
