NTBG030N120M3S - onsemi

Description: 100% Avalanche Tested; 15V to 18V Gate Drive; New M3S technology: 29 mohm RDS(ON) with low Eon and Eoff losses; Halide Free and RoHS Compliant; D2PAK-7L package with Kelvin source configuration; Excellent FOM [ = Rdson * Eoss ]; Ultra Low Gate Charge (QG(tot) = 107 nC); High Speed Switching with Low Capacitance (Coss = 106 pF)

Download NTBG030N120M3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

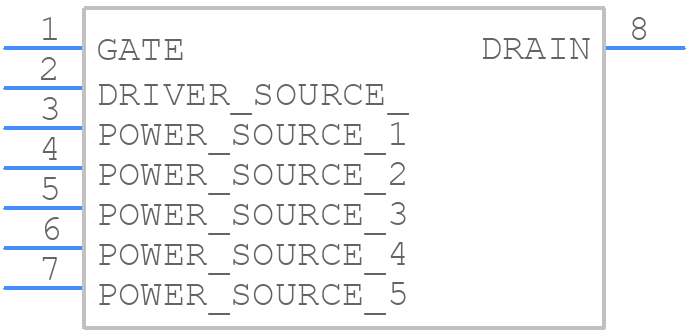

NTBG030N120M3S - onsemi - PCB symbol
click to zoom
PCB Footprints

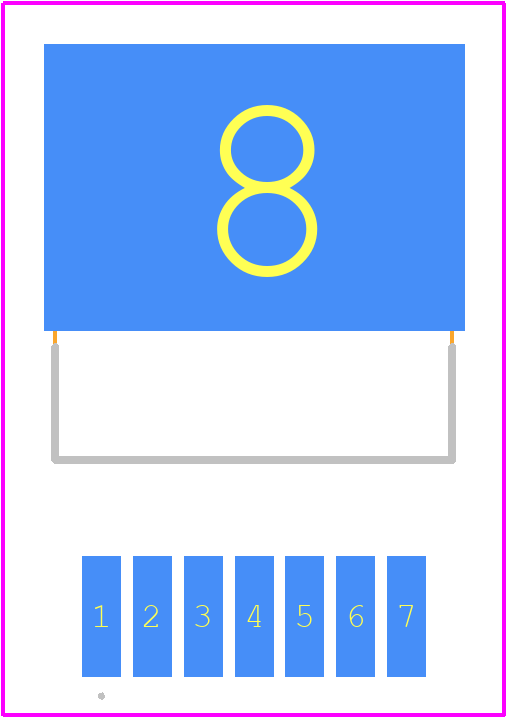

NTBG030N120M3S - onsemi PCB footprint - Other - Other - D2PAK−7L_2023-2
click to zoom
3D Models
NTBG030N120M3S - onsemi - 3D model - Other - D2PAK−7L_2023-2
click to zoom

NTBG030N120M3S Details

  • Manufacturer Part Number:

    NTBG030N120M3S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    6.82

  • Avalanche Energy Rating (Eas):

    220 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    77 A

  • Drain-source On Resistance-Max:

    0.039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    9.4 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    348 W

  • Pulsed Drain Current-Max (IDM):

    207 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

NTBG030N120M3S Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the NTBG030N120M3S is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling is crucial for the NTBG030N120M3S. Ensure good thermal contact between the device and the heat sink, and use a thermal interface material (TIM) if necessary. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 300W.
  • The recommended gate drive voltage for the NTBG030N120M3S is between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the NTBG030N120M3S can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate drive signals are synchronized to prevent uneven current sharing.
  • The recommended dead time for the NTBG030N120M3S depends on the specific application and switching frequency. As a general guideline, a dead time of 100-200 ns is recommended to prevent shoot-through and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTBG030N120M3S Overview

Use the download button to access the NTBG030N120M3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBG0, or try a keyword search, such as Power Field-Effect Transistors
