The recommended PCB layout for optimal thermal performance involves using a minimum of 2 oz copper thickness, a thermal relief pattern under the device, and a solid copper pour on the top and bottom layers. Additionally, it's recommended to use vias to connect the thermal pad to the thermal relief pattern.
To ensure the device is properly biased, it's essential to follow the recommended biasing scheme outlined in the datasheet. This typically involves using a gate driver IC and a bootstrap capacitor to provide the necessary voltage and current to the gate terminal. Additionally, it's crucial to ensure the device is operated within the recommended voltage and current ratings.
The critical parameters to monitor during operation to prevent device failure include the junction temperature (TJ), drain-source voltage (VDS), gate-source voltage (VGS), and drain current (ID). It's essential to ensure these parameters are within the recommended operating ranges to prevent overheating, overvoltage, and overcurrent conditions.
The correct gate resistor value depends on the specific application requirements, including the switching frequency, gate driver IC, and PCB layout. A general rule of thumb is to use a gate resistor value between 1 ohm and 10 ohms. However, it's recommended to consult the gate driver IC datasheet and perform simulations to determine the optimal gate resistor value for your specific application.
The recommended ESD protection measures for this device include using ESD-sensitive handling procedures during assembly, implementing ESD protection circuits on the PCB, and using ESD-protected gate driver ICs. Additionally, it's essential to ensure the device is properly grounded and connected to a suitable ESD protection network.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTBG040N120M3S Overview

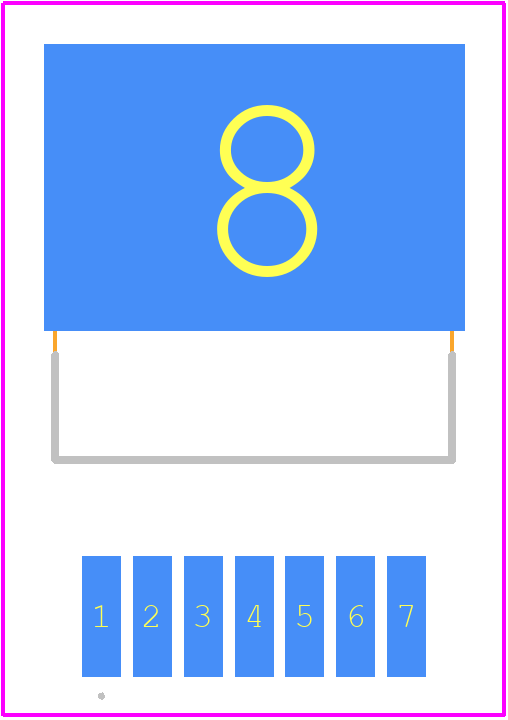

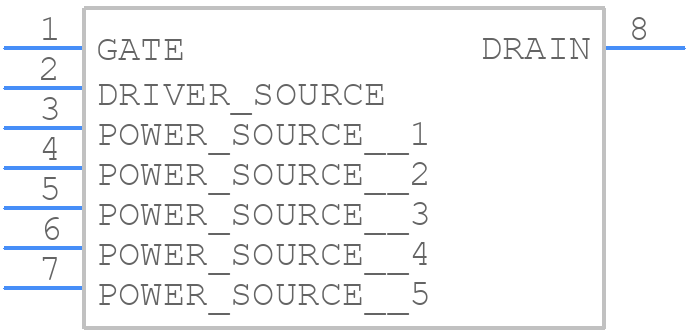

Use the download button to access the NTBG040N120M3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBG0,
or try a keyword search, such as Power Field-Effect Transistors
