The recommended PCB layout for optimal thermal performance involves using a minimum of 2 oz copper thickness, a thermal relief pattern under the device, and a solid copper pour on the top and bottom layers connected to the thermal pad. Additionally, it's recommended to use vias to connect the thermal pad to the bottom layer to improve heat dissipation.
To ensure the device is properly biased for optimal performance, it's essential to follow the recommended biasing scheme outlined in the datasheet. This typically involves connecting the gate to a voltage source through a resistor, and the source to a voltage source or ground through a resistor. The specific biasing scheme may vary depending on the application, so it's crucial to consult the datasheet and application notes for guidance.
Operating the device beyond the recommended maximum junction temperature can lead to reduced performance, decreased reliability, and potentially even device failure. It's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and longevity.
To handle ESD protection for this device, it's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, it's essential to design the PCB with ESD protection in mind, such as using ESD protection diodes and resistors, and ensuring that the device is properly grounded.
Using a different package type or lead frame material can affect the device's thermal performance, electrical characteristics, and reliability. It's essential to consult the datasheet and application notes to understand the implications of using a different package type or lead frame material, and to ensure that the device is properly designed and tested for the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTBG070N120M3S Overview

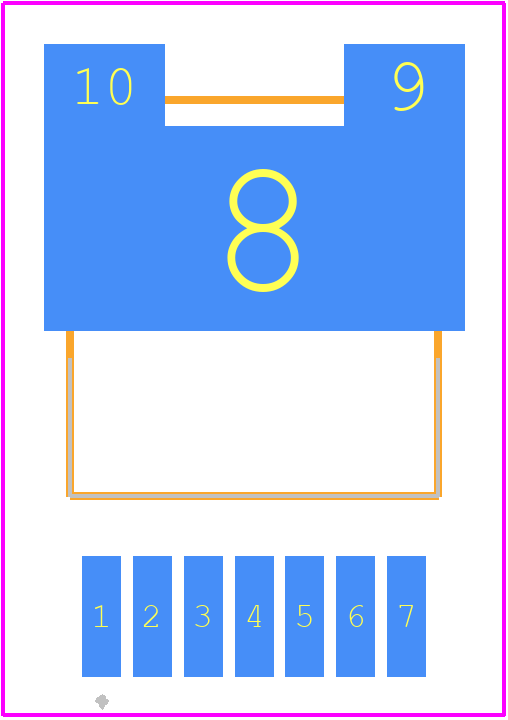

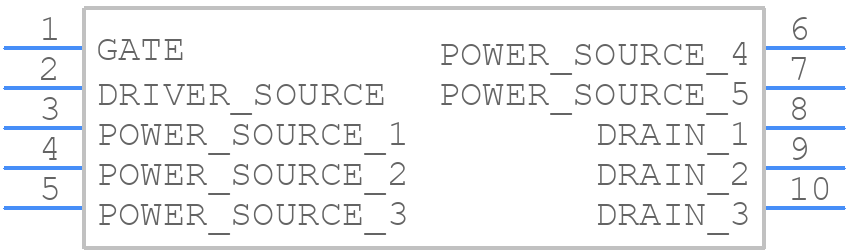

Use the download button to access the NTBG070N120M3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBG0,
or try a keyword search, such as Power Field-Effect Transistors
