NTBL032N065M3S - onsemi

Description: Leadless thin SMD package; Kelvin Source configuration; Excellent FOM [ = Rdson * Eoss ]; Ultra Low Gate Charge (QG(tot) = 55 nC); Typ. RDS(on) = 32 mΩ at Vgs = 18V; High Speed Switching with Low Capacitance (Coss = 113 pF); 15V to 18V Gate Drive; Zero reverse recovery current of body diode; 650V rated; 100% UIL Tested; RoHS Compliant; Moisture Sensitivity Level 1 guarantee; Max Junction Temperature 175°C

Download NTBL032N065M3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

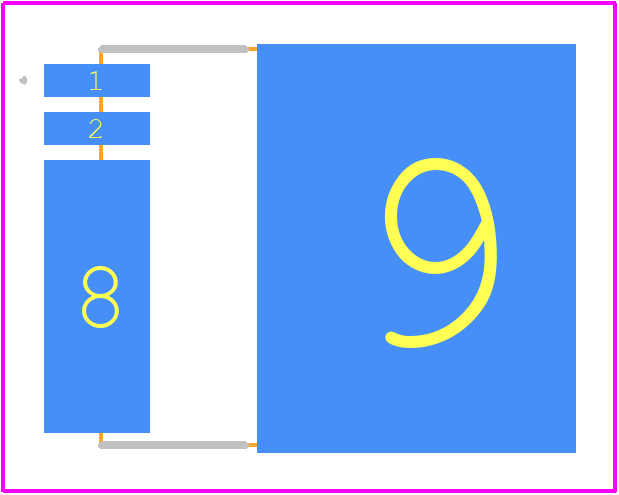

NTBL032N065M3S - onsemi PCB footprint - Other - Other - H−PSOF8L 9.90x10.38x2.30, 1.20P CASE 100DC ISSUE D_2024
click to zoom
3D Models
NTBL032N065M3S - onsemi  - 3D model - Other - H−PSOF8L 9.90x10.38x2.30, 1.20P CASE 100DC ISSUE D_2024
click to zoom

NTBL032N065M3S Details

  • Manufacturer Part Number:

    NTBL032N065M3S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    H-PSOF8L 9.90x10.38x2.30, 1.20P

  • Package Description:

    HSOF-8

  • Manufacturer Package Code:

    100DC

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    139 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    55 A

  • Drain-source On Resistance-Max:

    0.044 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    8.9 pF

  • JEDEC-95 Code:

    MO-299

  • JESD-30 Code:

    R-PSSO-F8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    227 W

  • Pulsed Drain Current-Max (IDM):

    192 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
