NTBL048N60S5H - onsemi

NTBL048N60S5H Details

• Manufacturer Part Number:

  NTBL048N60S5H

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

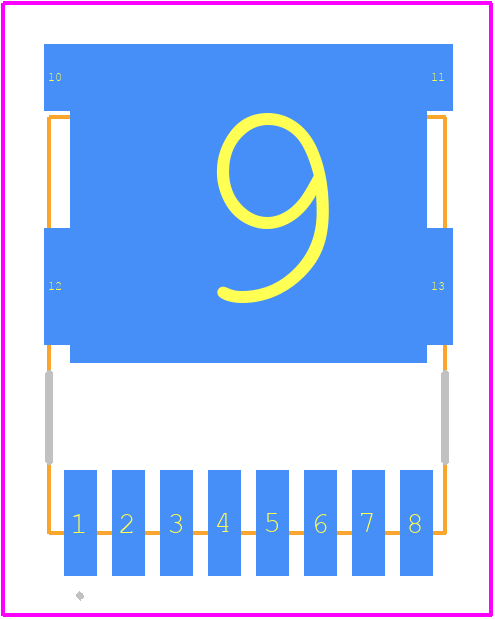

• Part Package Code:

  H-PSOF8L 9.90x10.38x2.30, 1.20P

• Package Description:

  H-PSOF8L, 8 PIN

• Manufacturer Package Code:

  100DC

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  6.7

• Avalanche Energy Rating (Eas):

  478 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

• DS Breakdown Voltage-Min:

  600 V

• Drain Current-Max (ID):

  50 A

• Drain-source On Resistance-Max:

  0.048 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  R-PSSO-F8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  297 W

• Pulsed Drain Current-Max (IDM):

  175 A

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  FLAT

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
