The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, the device should be operated within the specified junction temperature (Tj) range of -55°C to 150°C.
The NTBL050N65S3H has an integrated ESD protection circuit, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A human body model (HBM) of 2kV and a machine model (MM) of 200V are recommended.
Yes, the NTBL050N65S3H is qualified for automotive and high-reliability applications. It meets the AEC-Q101 qualification standard and is PPAP (Production Part Approval Process) capable. However, it's essential to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
The recommended gate drive circuits for the NTBL050N65S3H involve using a dedicated gate driver IC or a discrete circuit with a suitable voltage source, resistors, and capacitors. The gate drive circuit should be designed to provide a fast rise and fall time, while also ensuring proper voltage and current limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTBL050N65S3H Overview

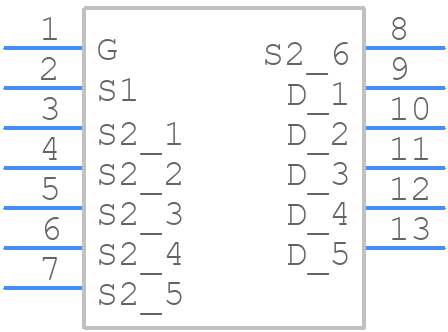

Use the download button to access the NTBL050N65S3H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBL0,
or try a keyword search, such as Power Field-Effect Transistors
