The recommended PCB layout for optimal thermal performance involves using a minimum of 2 oz copper thickness, a thermal relief pattern under the device, and a solid copper pour on the top and bottom layers. Additionally, it's recommended to use vias to connect the thermal pad to the thermal relief pattern.
To ensure the device is properly biased for optimal performance, it's recommended to follow the application circuit shown in the datasheet, which includes a bootstrap capacitor and a bias resistor. Additionally, the gate-source voltage should be set to the recommended value, and the device should be operated within the specified temperature range.
Operating the device beyond the recommended temperature range can lead to reduced performance, decreased reliability, and potentially even device failure. It's essential to ensure the device is operated within the specified temperature range to maintain optimal performance and reliability.
To handle ESD protection for the device, it's recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat. Additionally, the device should be connected to a ground plane or ESD protection circuitry to prevent damage from electrostatic discharge.
The recommended soldering conditions for the device involve using a peak reflow temperature of 260°C, a soldering time of 10-30 seconds, and a soldering method that complies with the JEDEC J-STD-020 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTBL060N065SC1 Overview

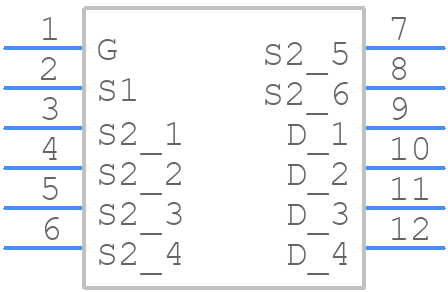

Use the download button to access the NTBL060N065SC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBL0,
or try a keyword search, such as Power Field-Effect Transistors
