- Part Number NTGS4141NT1G
- Manufacturer onsemi
- Pin Count 6
- Part Category MOSFET (N-Channel)
- Package Category SOT23 (6-Pin)
- Footprint Name SOT23 (6-Pin) - TSOP
- Released Date Aug 12, 2023
- Last Modified Date Jan 22, 2025 4:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
NTGS4141NT1G Details
-
Manufacturer Part Number:
NTGS4141NT1G
-
Brand Name:
onsemi
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSOP-6
-
Pin Count:
6
-
Manufacturer Package Code:
318G-02
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
Manufacturer:
onsemi
NTGS4141NT1G Frequently Asked Questions (FAQs)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9093/D.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and airflow management. Additionally, consider using a thermocouple or thermistor to monitor the device temperature and implement thermal protection mechanisms.
-
The RSENSE value affects the accuracy of current sensing and the power consumption of the device. A smaller RSENSE value increases the current sense accuracy but also increases power consumption. A larger RSENSE value reduces power consumption but may compromise accuracy. Optimize RSENSE based on system requirements and constraints.
-
The NTGS4141NT1G has built-in OCP and SCP features. To handle these features, ensure that the system is designed to detect and respond to fault conditions, such as overcurrent or short-circuit events. This may involve implementing external circuitry or using a microcontroller to monitor and respond to fault conditions.
-
The NTGS4141NT1G has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Ensure that the device is handled and stored in an ESD-protected environment, and consider adding external ESD protection devices if necessary.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
NTGS4141NT1G Overview

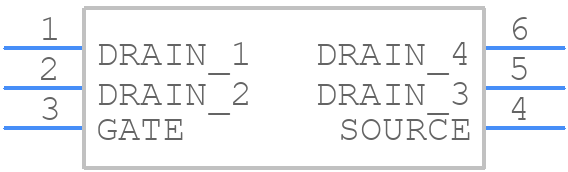

Use the download button to access the NTGS4141NT1G schematic symbol, PCB footprint, and 3D model.
