The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Also, ensure proper thermal design, including heat sinking and airflow, to keep the device within the specified temperature range.
The NTMT095N65S3H has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
Yes, the NTMT095N65S3H is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is used within the specified temperature range and other environmental conditions.
The optimal gate resistor value depends on the specific application, including the switching frequency, voltage, and current. A general guideline is to use a gate resistor value between 10 ohms and 100 ohms. However, it's recommended to consult the application note or seek guidance from onsemi's technical support team for specific guidance.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
NTMT095N65S3H Overview

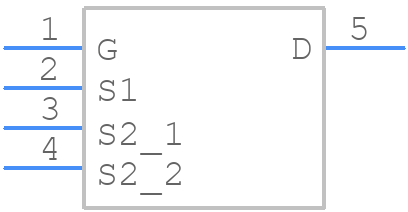

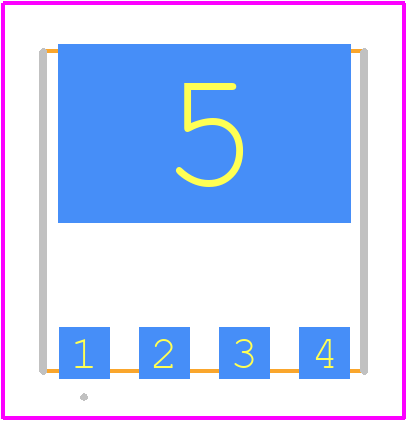

Use the download button to access the NTMT095N65S3H 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMT0,
or try a keyword search, such as Power Field-Effect Transistors
