NVBG015N065SC1 - onsemi

Description: Qualified for Automotive According to AEC−Q101; 650V rated; Max RDS(on) = 18 mΩ at Vgs = 18V, Id = 75A; High Speed Switching and Low Capacitance; 100% UIL Tested; Devices are RoHS Compliant

Download NVBG015N065SC1 Model

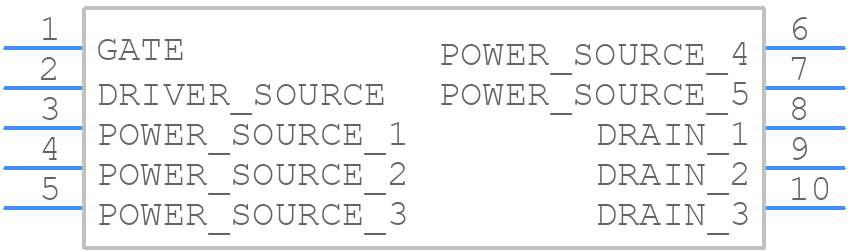

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

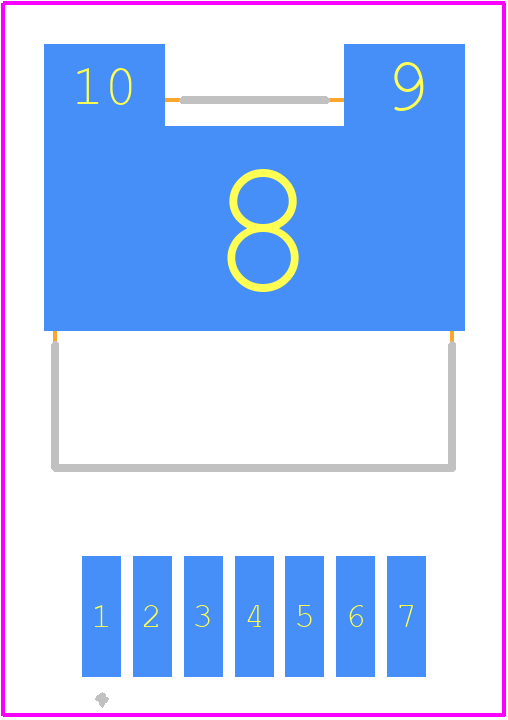

NVBG015N065SC1 - onsemi PCB footprint - Other - Other - D2PAK−7L_2021
click to zoom
3D Models
NVBG015N065SC1 - onsemi  - 3D model - Other - D2PAK−7L_2021
click to zoom

NVBG015N065SC1 Details

  • Manufacturer Part Number:

    NVBG015N065SC1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2020-03-31

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    176 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    867 W

  • Pulsed Drain Current-Max (IDM):

    873 A

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

NVBG015N065SC1 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an inner layer or the backside of the PCB to further improve thermal performance.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
  • The NVBG015N065SC1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
  • Yes, the NVBG015N065SC1 is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards or customer requirements.
  • Check the device's gate drive circuitry, ensure proper PCB layout, and verify that the device is operated within the recommended voltage and current ranges. Use an oscilloscope to measure the device's switching waveforms and identify any anomalies.
