A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid copper pour on the top and bottom layers, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider derating the device's power handling capabilities at high temperatures.
The recommended soldering conditions for the NVBG022N120M3S are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a melting point above 217°C.
Yes, you can use multiple NVBG022N120M3S devices in parallel to increase power handling. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing.
The recommended gate drive voltage for the NVBG022N120M3S is 10-15V, and the recommended gate drive current is 1-2A. It's essential to use a suitable gate driver IC that can provide the required voltage and current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBG022N120M3S Overview

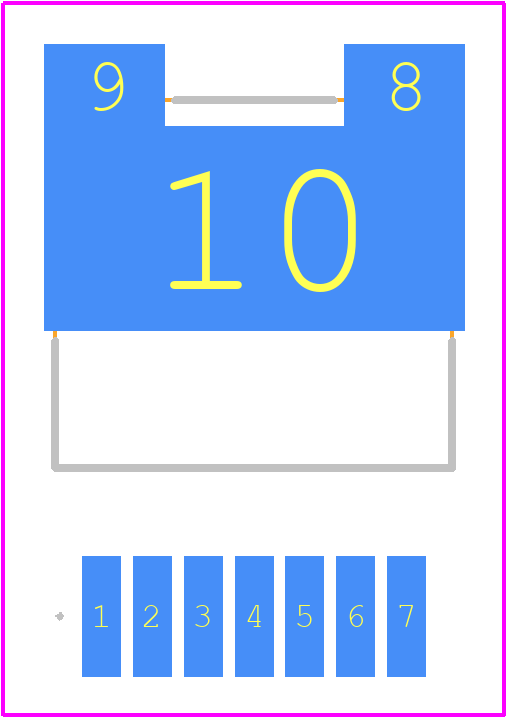

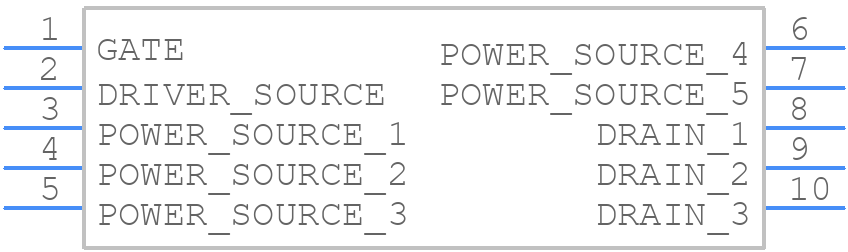

Use the download button to access the NVBG022N120M3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBG0,
or try a keyword search, such as Power Field-Effect Transistors
