NVBG040N120M3S - onsemi

Description: Typical RDS(on) = 40mΩ at Vgs =18V, Id = 25A; Qualified for Automotive According to AEC−Q101; New M3S technology: 40.8mohm RDS(ON) with low EON and EOFF losses; 15V to 18V Gate Drive; Devices are Pb−Free and are RoHS Compliant

Download NVBG040N120M3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

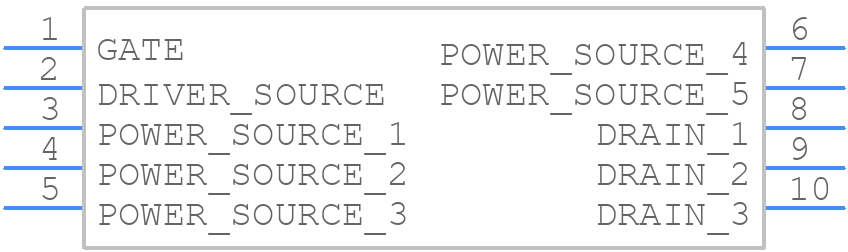

NVBG040N120M3S - onsemi - PCB symbol
click to zoom
PCB Footprints

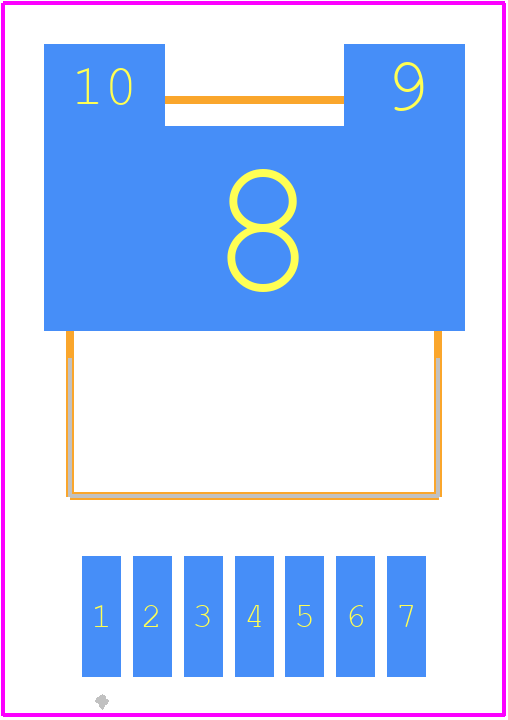

NVBG040N120M3S - onsemi PCB footprint - Other - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom
3D Models
NVBG040N120M3S - onsemi - 3D model - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom

NVBG040N120M3S Details

  • Manufacturer Part Number:

    NVBG040N120M3S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Package Description:

    D2PAK-7

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.8

  • Avalanche Energy Rating (Eas):

    143 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    57 A

  • Drain-source On Resistance-Max:

    0.054 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    263 W

  • Pulsed Drain Current-Max (IDM):

    149 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE
