NVBG095N065SC1 - onsemi

Description: Low Output Capacitance (Coss = 89 pF); Zero reverse recovery current of body diode; Typ. RDS(on) = 70 mΩ; 650V rated; 100% UIL Tested; Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Moisture Sensitivity Level 1 guarantee; Internal Gate Resistance: 7.6 Ω; High Junction Temperature (Tj = 175°C); Kelvin Source Configuration; Ultra Low Gate Charge (QG(tot) = 50 nC)

Download NVBG095N065SC1 Model

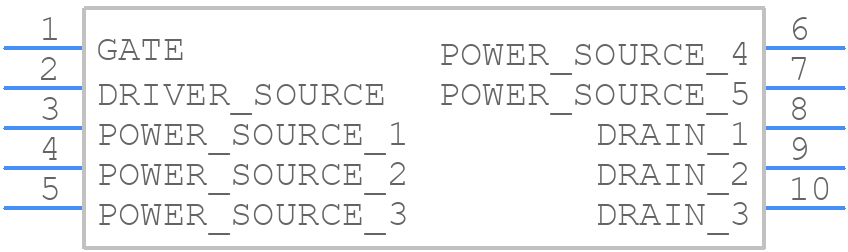

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

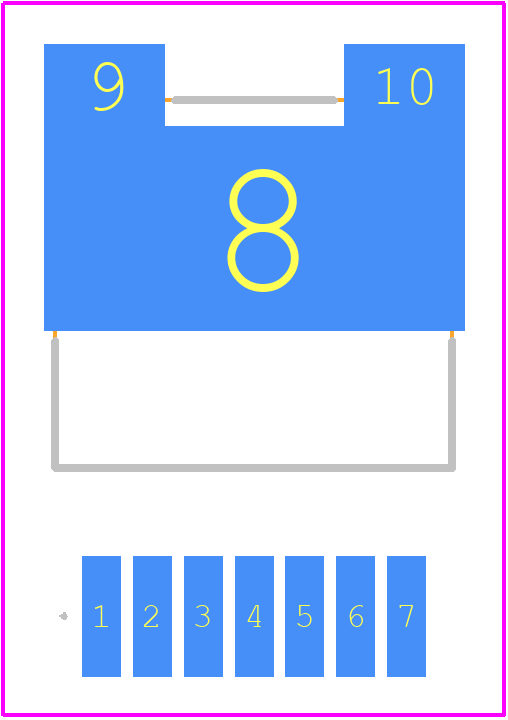

NVBG095N065SC1 - onsemi PCB footprint - Other - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ
click to zoom

NVBG095N065SC1 Details

  • Manufacturer Part Number:

    NVBG095N065SC1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Package Description:

    D2PAK-7

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.7

  • Avalanche Energy Rating (Eas):

    44 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.105 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7.8 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    110 W

  • Pulsed Drain Current-Max (IDM):

    79 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE
