NVBG095N65S3F - onsemi

Description: Best in Class body diode; Internal Rg; Lower RDS(ON) / Same Packages; Lower FOM (RDS(ON) max. X Qg typ. & RDS(ON) max. X Eoss); Internal Zener / 650V BV dss

Download NVBG095N65S3F Model

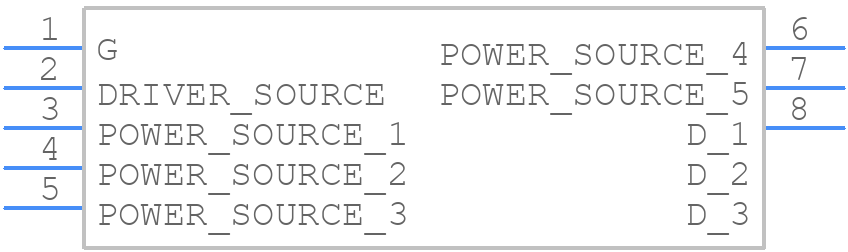

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVBG095N65S3F - onsemi PCB footprint - Other - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom
3D Models
NVBG095N65S3F - onsemi  - 3D model - Other - D2PAK7 (TO−263−7L HV) CASE 418BJ ISSUE B
click to zoom

NVBG095N65S3F Details

  • Manufacturer Part Number:

    NVBG095N65S3F

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK7 (TO-263-7L HV)

  • Package Description:

    D2PAK-7

  • Manufacturer Package Code:

    418BJ

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.8

  • Avalanche Energy Rating (Eas):

    440 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    36 A

  • Drain-source On Resistance-Max:

    0.095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    272 W

  • Pulsed Drain Current-Max (IDM):

    90 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVBG095N65S3F Overview

Use the download button to access the NVBG095N65S3F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBG0, or try a keyword search, such as Power Field-Effect Transistors
