A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power handling capabilities. Additionally, ensure that the PCB and surrounding components are rated for the expected operating temperatures.
The recommended soldering conditions for the NVBLS0D7N04M8TXG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also recommended to use a solder with a melting point above 217°C.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and use ESD-safe packaging and storage materials.
The MSL rating of 3 indicates that the device is sensitive to moisture and requires special handling and storage procedures to prevent damage. This includes baking the device before reflow soldering, using a dry pack or nitrogen-filled packaging, and following the recommended storage and handling procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBLS0D7N04M8TXG Overview

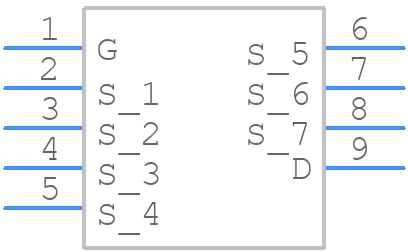

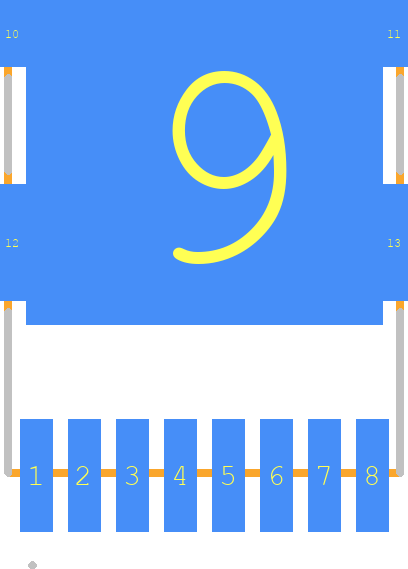

Use the download button to access the NVBLS0D7N04M8TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBLS,
or try a keyword search, such as Power Field-Effect Transistors
