The recommended PCB layout for optimal thermal performance involves using a minimum of 2oz copper thickness, a solid ground plane, and thermal vias under the device. Additionally, keeping the PCB surface clean and free of solder mask in the thermal pad area can improve heat dissipation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Also, consider using a heat sink or thermal interface material to reduce thermal resistance.
The NVBLS0D8N08XTXG has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and avoiding direct contact with the device pins.
Yes, the NVBLS0D8N08XTXG is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q101 qualification and ensure that it meets the specific requirements of your application.
To troubleshoot issues with the device, start by reviewing the application circuit and ensuring that it meets the recommended operating conditions. Check for proper thermal design, PCB layout, and component selection. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVBLS0D8N08XTXG Overview

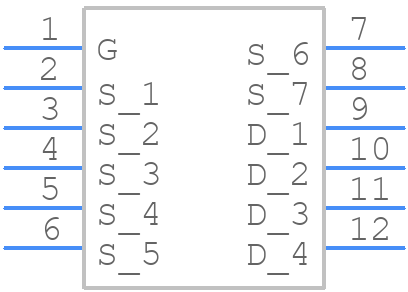

Use the download button to access the NVBLS0D8N08XTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBLS,
or try a keyword search, such as Power Field-Effect Transistors
