NVBLS1D7N10MCTXG - onsemi

Description: Low RDS(on); Low QG and Capacitance; RoHS Compliant ; AEC Q101- Qualified and PPAP Capable

Download NVBLS1D7N10MCTXG Model

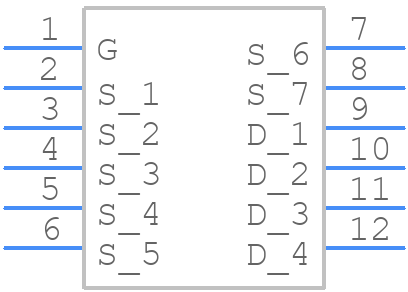

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVBLS1D7N10MCTXG - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom
3D Models
NVBLS1D7N10MCTXG - onsemi  - 3D model - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom

NVBLS1D7N10MCTXG Details

  • Manufacturer Part Number:

    NVBLS1D7N10MCTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    2716 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    265 A

  • Drain-source On Resistance-Max:

    0.0018 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    79 pF

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    303 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVBLS1D7N10MCTXG Overview

Use the download button to access the NVBLS1D7N10MCTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVBLS, or try a keyword search, such as Power Field-Effect Transistors
