NVBLS4D0N15MC - onsemi

Description: Low RDS (ON); Low QG and Capacitance; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVBLS4D0N15MC Model

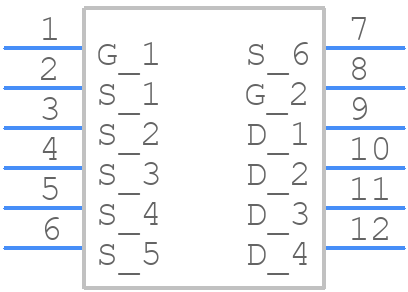

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVBLS4D0N15MC - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom
3D Models
NVBLS4D0N15MC - onsemi  - 3D model - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom

NVBLS4D0N15MC Details

  • Manufacturer Part Number:

    NVBLS4D0N15MC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-04-03

  • Manufacturer:

    onsemi

  • YTEOL:

    6.2

  • Avalanche Energy Rating (Eas):

    332 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    187 A

  • Drain-source On Resistance-Max:

    0.0044 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-299A

  • JESD-30 Code:

    R-PDSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    316 W

  • Pulsed Drain Current-Max (IDM):

    2255 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NVBLS4D0N15MC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NVBLS4D0N15MC is -55°C to 150°C.
  • To ensure safe operating area, ensure the MOSFET is operated within the specified voltage, current, and temperature ratings. Also, consider the power dissipation and thermal management to prevent overheating.
  • The recommended gate drive voltage for the NVBLS4D0N15MC is between 4.5V and 10V to ensure proper switching and minimize power losses.
  • To minimize EMI, use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, using ground planes, and adding decoupling capacitors. Additionally, consider using EMI filters or shielding to reduce radiation.
