SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate-Emitter Thr Voltage-Max:
6.5 V
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XXMA-X13
Number of Elements:
2
Number of Terminals:
13
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Polarity/Channel Type:
N-CHANNEL
Reference Standard:
AEC-Q101
Surface Mount:
YES
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
913 ns
Turn-on Time-Nom (ton):
235 ns
VCEsat-Max:
1.45 V
NVG500A75L4DSF2 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for optimal performance can be found in the onsemi application note AND9093/D, which provides guidelines for thermal design and layout considerations. Additionally, onsemi recommends using a 4-layer PCB with a thermal pad connected to a solid copper plane to dissipate heat efficiently.
To ensure the device is properly biased and configured, follow the recommended operating conditions and biasing schemes outlined in the datasheet. Additionally, consult the onsemi application note AND9093/D, which provides detailed information on biasing and configuration for optimal performance.
The recommended test and measurement procedures for characterizing the device's performance can be found in the onsemi application note AND9093/D. This document provides detailed information on test setup, measurement techniques, and data analysis for characterizing the device's electrical and thermal performance.
To prevent damage and ensure reliability, handle the device according to the recommended handling and storage procedures outlined in the onsemi datasheet and application notes. This includes avoiding excessive mechanical stress, using anti-static packaging and handling materials, and storing the device in a clean, dry environment.
The potential failure modes of the NVG500A75L4DSF2 include thermal overload, electrical overstress, and mechanical stress. To mitigate these failure modes, follow the recommended operating conditions, biasing schemes, and thermal management guidelines outlined in the datasheet and application notes. Additionally, implement proper PCB design, layout, and assembly practices to minimize the risk of failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NVG500A75L4DSF2 Overview

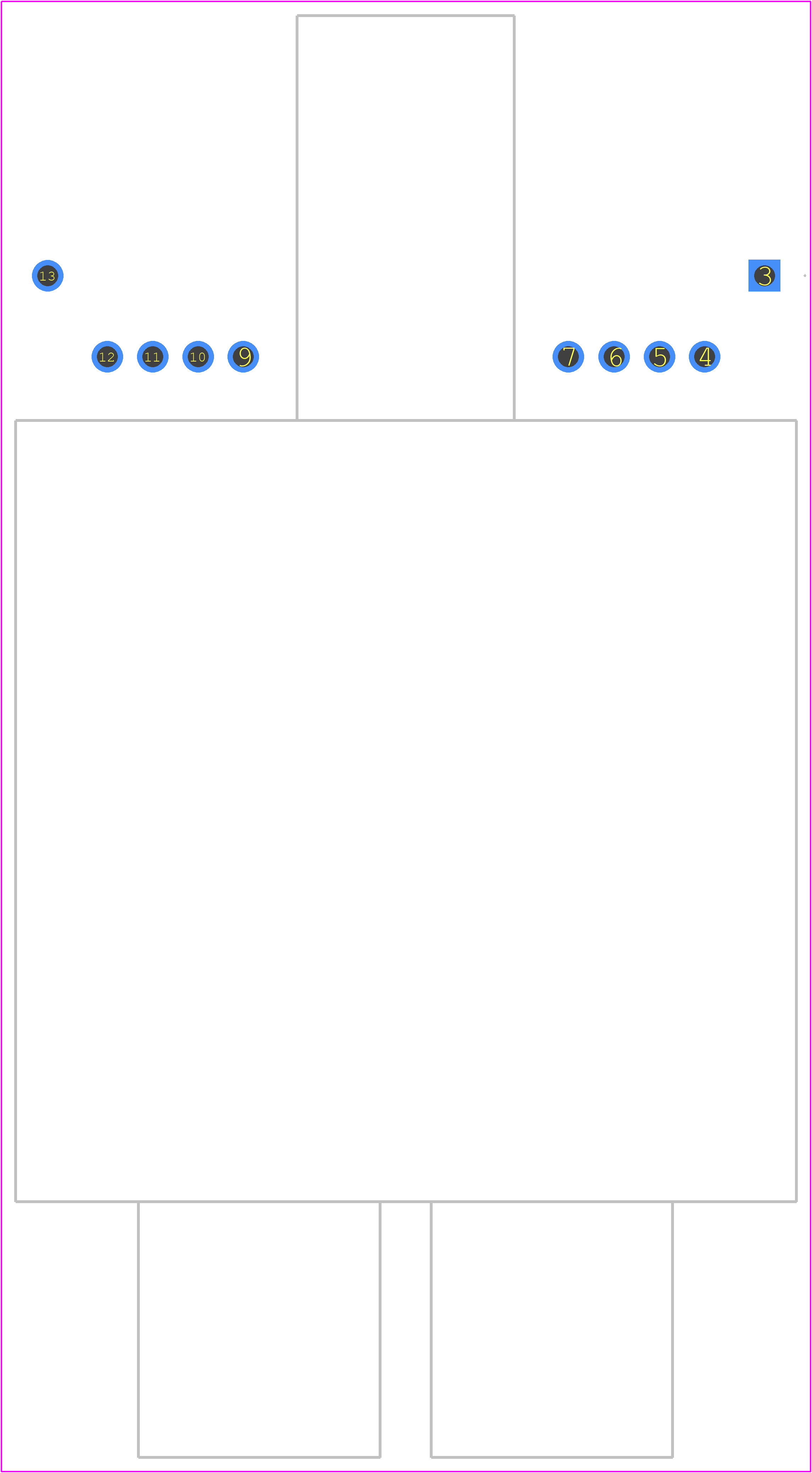

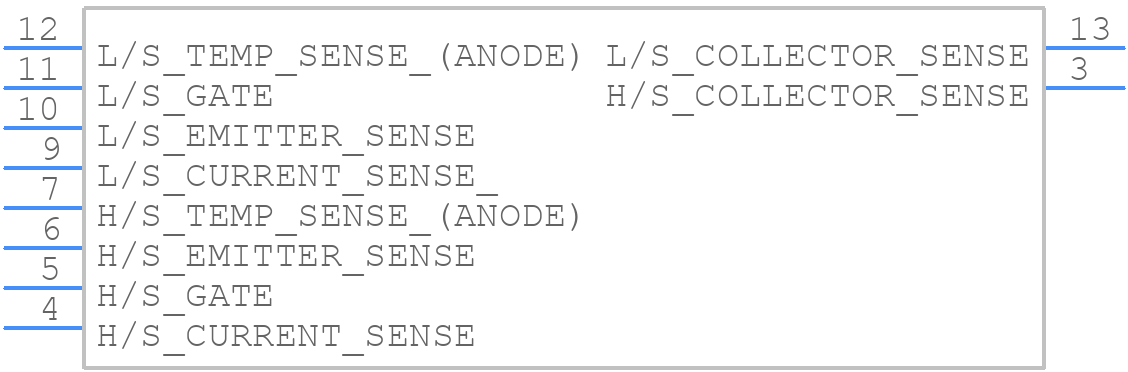

Use the download button to access the NVG500A75L4DSF2 schematic symbol, PCB footprint, and 3D model.
