NVMJD015N06CLTWG - onsemi

Description: Small Footprint (5x6 mm); Low rDS(on); Low QG and Capacitance; RoHS Compliant; AEC−Q101 Qualified and PPAP Capable

Download NVMJD015N06CLTWG Model

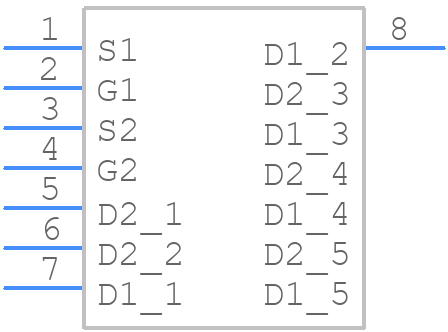

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

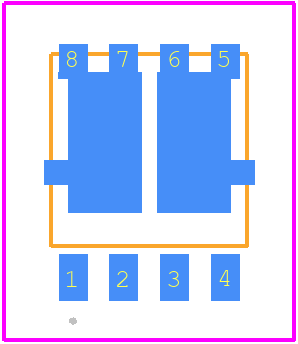

NVMJD015N06CLTWG - onsemi PCB footprint - Other - Other - LFPAK8 5.15x6.15 CASE 760AF ISSUE  O
click to zoom
3D Models
NVMJD015N06CLTWG - onsemi  - 3D model - Other - LFPAK8 5.15x6.15 CASE 760AF ISSUE  O
click to zoom

NVMJD015N06CLTWG Details

  • Manufacturer Part Number:

    NVMJD015N06CLTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFPAK8 5.15x6.15

  • Manufacturer Package Code:

    760AF

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    69 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    10.1 A

  • Drain-source On Resistance-Max:

    0.024 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5.8 pF

  • JESD-30 Code:

    R-PSSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    37 W

  • Pulsed Drain Current-Max (IDM):

    123 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
