Part Image

NVMJD027N10MCLTWG - onsemi

Description: Small Footprint (5x6 mm); Low RDS (ON); Low QG and Capacitance; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free, Beryllium Free and are RoHS Compliant

Download NVMJD027N10MCLTWG Model

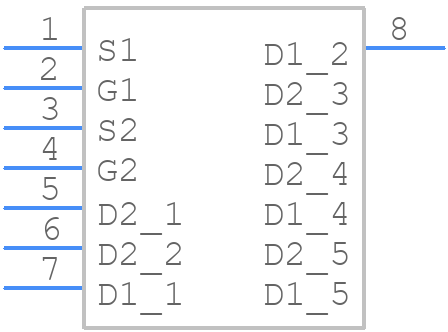

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMJD027N10MCLTWG - onsemi PCB footprint - Other - Other - LFPAK8 5.15x6.15 CASE 760AF ISSUE O_2022-3
click to zoom

NVMJD027N10MCLTWG Details

  • Manufacturer Part Number:

    NVMJD027N10MCLTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFPAK8 5.15x6.15

  • Manufacturer Package Code:

    760AF

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    291 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    28 A

  • Drain-source On Resistance-Max:

    0.026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    4 pF

  • JESD-30 Code:

    R-PDSO-X8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    46 W

  • Pulsed Drain Current-Max (IDM):

    115 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVMJD027N10MCLTWG Overview

Use the download button to access the NVMJD027N10MCLTWG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NVMJD, or try a keyword search, such as Power Field-Effect Transistors
