Part Image

NVMJD4D7N04CLTWG - onsemi

Description: Small Footprint (5x6 mm); Low RDS(on) to Minimize Conduction Losses; Low QG and Capacitance; AEC−Q101 Qualified and PPAP Capable; RoHS Compliant

Download NVMJD4D7N04CLTWG Model

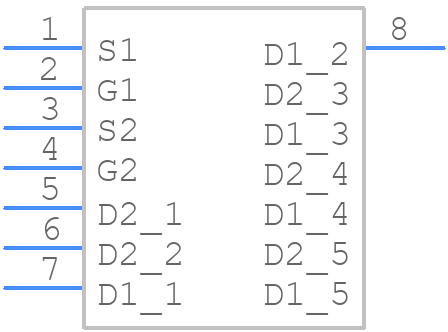

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMJD4D7N04CLTWG - onsemi PCB footprint - Other - Other - LFPAK8 5.15x6.15 CASE 760AF ISSUE O
click to zoom
3D Models
NVMJD4D7N04CLTWG - onsemi  - 3D model - Other - LFPAK8 5.15x6.15 CASE 760AF ISSUE O
click to zoom

NVMJD4D7N04CLTWG Details

  • Manufacturer Part Number:

    NVMJD4D7N04CLTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFPAK8 5.15x6.15

  • Package Description:

    LFPAK-8

  • Manufacturer Package Code:

    760AF

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    212 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0077 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    19 pF

  • JESD-30 Code:

    R-PSSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    51 W

  • Pulsed Drain Current-Max (IDM):

    324 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVMJD4D7N04CLTWG Overview

Use the download button to access the NVMJD4D7N04CLTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVMJD, or try a keyword search, such as Power Field-Effect Transistors
