NVMJST1D4N06CLTXG - onsemi

Description: Low RDS(on); Low QG and Capacitance; AEC−Q101 Qualified and PPAP Capable; Top Side Cooling; Small Footprint (5x7 mm); RoHS Compliant

Download NVMJST1D4N06CLTXG Model

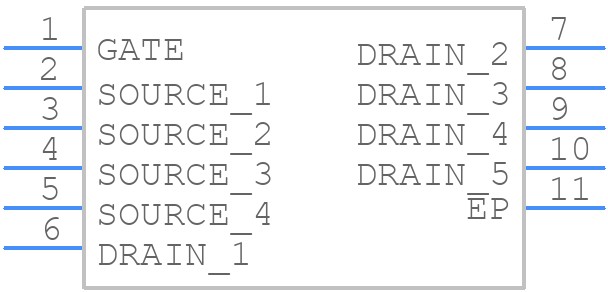

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NVMJST1D4N06CLTXG - onsemi PCB footprint - Other - Other - NVMJST1D4N06CLTXG-2
click to zoom
3D Models
NVMJST1D4N06CLTXG - onsemi  - 3D model - Other - NVMJST1D4N06CLTXG-2
click to zoom

NVMJST1D4N06CLTXG Details

  • Manufacturer Part Number:

    NVMJST1D4N06CLTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TCPAK10 5.1x7.5, 1.0P

  • Manufacturer Package Code:

    760AG

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    596 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    198 A

  • Drain-source On Resistance-Max:

    0.00149 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    37.5 pF

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    116 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NVMJST1D4N06CLTXG Overview

Use the download button to access the NVMJST1D4N06CLTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NVMJS, or try a keyword search, such as Power Field-Effect Transistors
