NX1029X - Nexperia

Description: FET, NXP, NX1029X NXP NX1029X Dual N/P-channel MOSFET Transistor, 6-Pin SOT-666

Download NX1029X Model

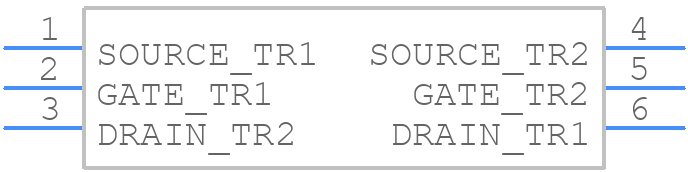

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX1029X - Nexperia PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT666
click to zoom
3D Models
NX1029X - Nexperia  - 3D model - SO Transistor Flat Lead - SOT666
click to zoom

NX1029X Details

  • Manufacturer Part Number:

    NX1029X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    0.33 A

  • Drain-source On Resistance-Max:

    1.6 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    4 pF

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NX1029X Frequently Asked Questions (FAQs)

  • Nexperia recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper thermal design, use a heat sink if necessary, and follow Nexperia's recommended operating conditions. Also, consider derating the device's power dissipation at high temperatures.
  • Although the datasheet specifies a maximum input voltage of 5.5V, Nexperia recommends limiting the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Yes, the NX1029X is suitable for high-frequency applications up to 100 MHz. However, ensure proper PCB layout, decoupling, and signal integrity to minimize signal degradation and ringing.
  • Nexperia recommends using external ESD protection devices, such as TVS diodes, to protect the NX1029X from electrostatic discharge. Follow Nexperia's ESD handling guidelines for proper device handling and storage.
